Results:

Photo Mfr. Part # Stock Price Quantity Datasheet Packaging Series ProductStatus TransformerType Inductance ET(Volt-Time) TurnsRatio-Primary:Secondary MountingType Size/Dimension Height-Seated(Max)

RT11S16-RU

RT11S16-RU

DISCRETE PULSE LAN XFMR 10/100

1085

0.68

- +

Add To Cart

Inquiry Now

RT11S16-RU

Datasheet

Tape & Reel (TR)

Transformer

Active

10/100 Base-T

350µH

-

1CT:1CT

Surface Mount

0.504 L x 0.272 W (12.80mm x 6.90mm)

0.222 (5.65mm)

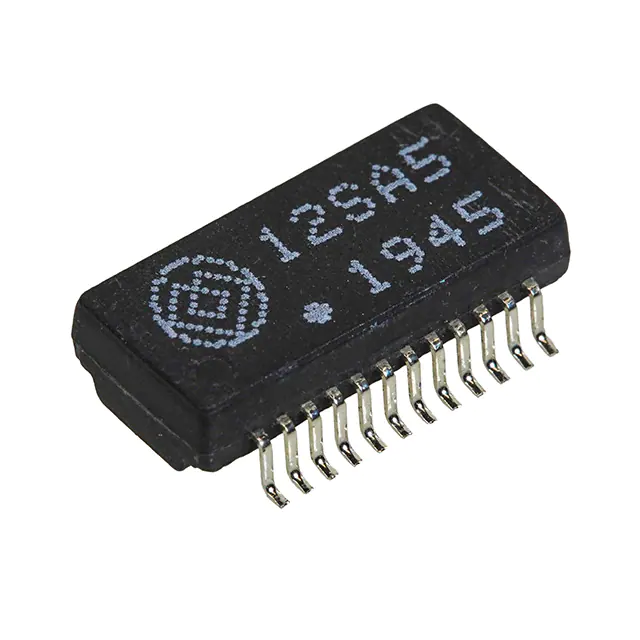

RT12SA5-RU

RT12SA5-RU

DISCRETE PULSE LAN XFMR 1G

3101

0.00

- +

Add To Cart

Inquiry Now

RT12SA5-RU

Datasheet

Tape & Reel (TR)

Transformer

Active

1000 Base-T

350µH

-

1CT:1CT

Surface Mount

0.594 L x 0.280 W (15.10mm x 7.10mm)

0.158 (4.01mm)
