Photo Mfr. Part # Stock Price Quantity Datasheet Packaging Series ProductStatus TransformerType Inductance ET(Volt-Time) TurnsRatio-Primary:Secondary MountingType Size/Dimension Height-Seated(Max)

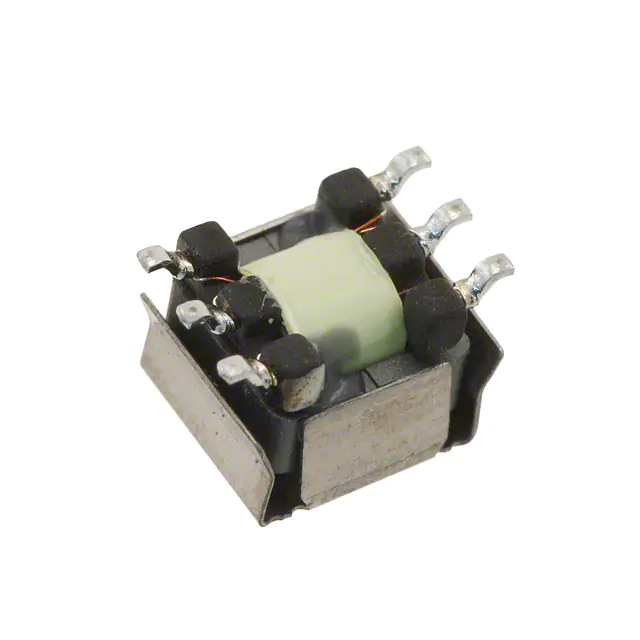

HM42-10002LFTR

HM42-10002LFTR

PULSE XFMR 2:1:1 300UH

TT Electronics/BI Magnetics

502

3.58

- +

Add To Cart

Inquiry Now

HM42-10002LFTR

Datasheet

Cut Tape (CT)

HM42

Discontinued at Mosen

Gate Drive

300µH

40.4VµS

2:1:1

Surface Mount

0.260 L x 0.319 W (6.60mm x 8.10mm)

0.217 (5.50mm)

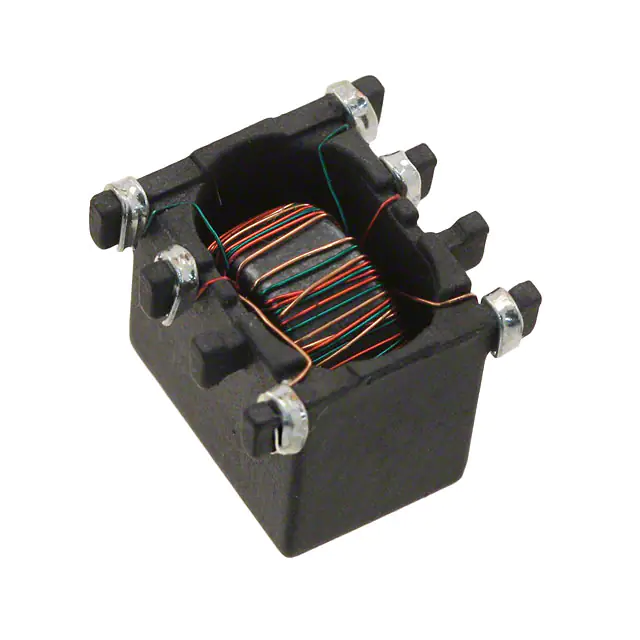

HM42-40004LFTR

HM42-40004LFTR

PULSE XFMR 2:1:1 1.2MH

TT Electronics/BI Magnetics

3117

4.89

- +

Add To Cart

Inquiry Now

HM42-40004LFTR

Datasheet

Cut Tape (CT)

HM42

Discontinued at Mosen

Gate Drive

1.2mH

45.4VµS

2:1:1

Surface Mount

0.362 L x 0.346 W (9.20mm x 8.80mm)

0.307 (7.80mm)

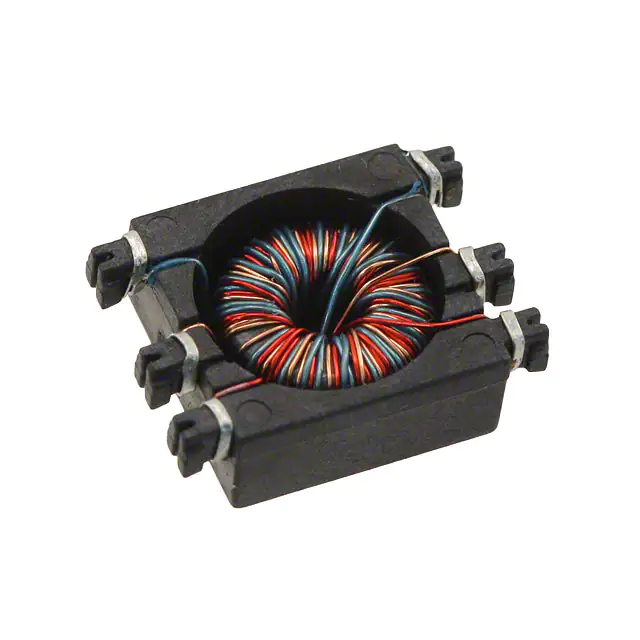

HM42-30001LFTR

HM42-30001LFTR

PULSE XFMR 1:1:1 980UH

TT Electronics/BI Magnetics

163

7.71

- +

Add To Cart

Inquiry Now

HM42-30001LFTR

Datasheet

Cut Tape (CT)

HM42

Discontinued at Mosen

Gate Drive

980µH

30.2VµS

1:1:1

Surface Mount

0.340 L x 0.460 W (8.64mm x 11.68mm)

0.161 (4.10mm)
