Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

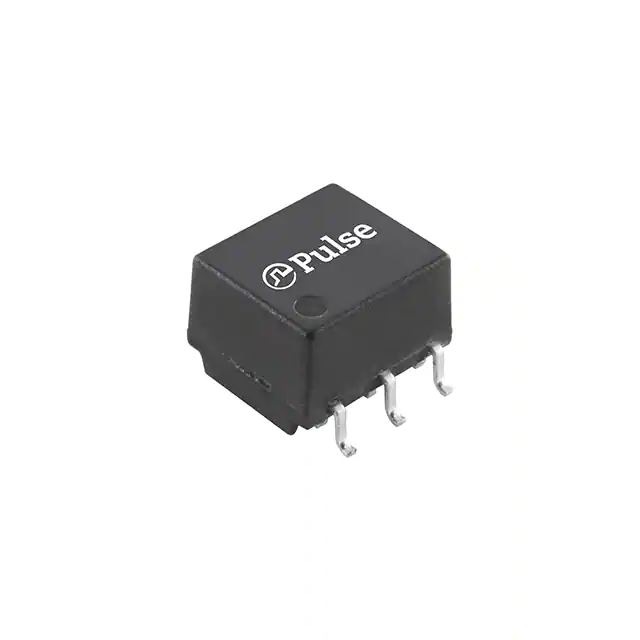

HM2101NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	5469	5.08	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.300 L x 0.265 W (7.62mm x 6.73mm)	0.225 (5.72mm)

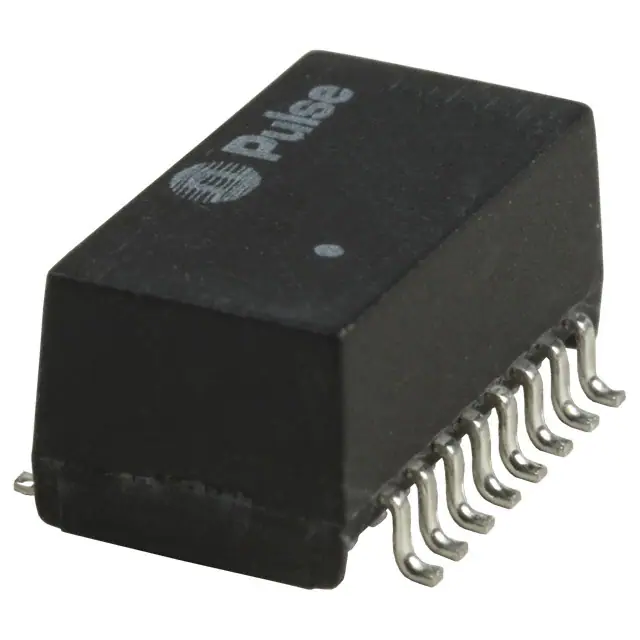

H1260NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	3060	5.38	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)

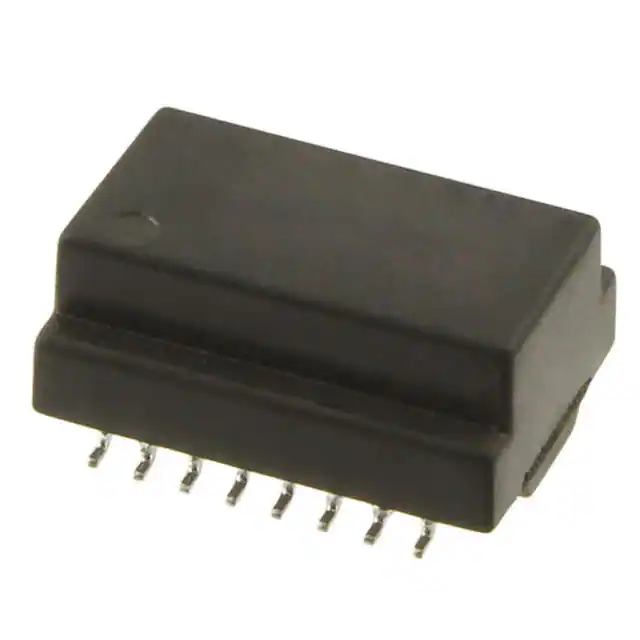

H1260FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	17610	5.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.225 (5.72mm)

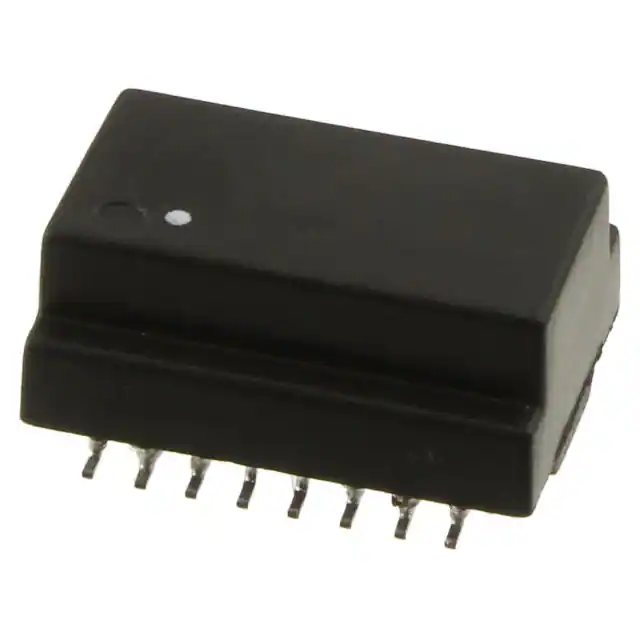

HX1260FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	7521	5.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
HX1260NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	5674	5.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Star Magnetics™	Active	LAN 10/100 Base-T	350µH, 400µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)

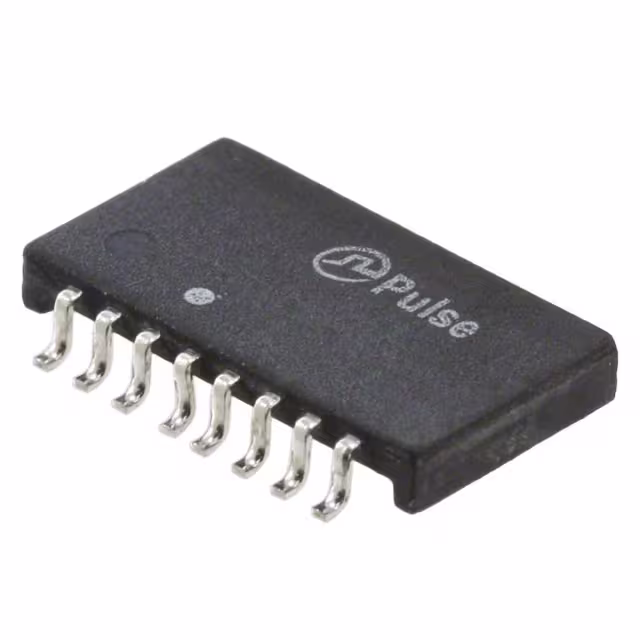

HX2326NLT MODULE 10/100B-T POE SMD Pulse Electronics Network	7298	5.08	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

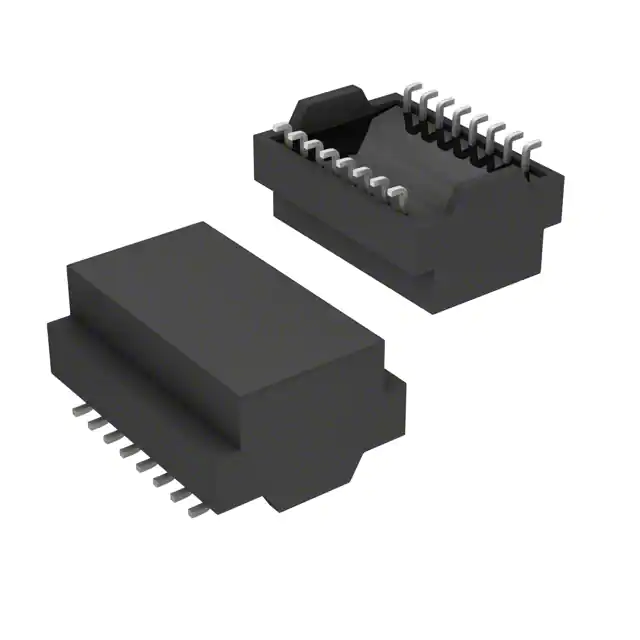

HX2326FNLT PULSE XFMR 1CT:1CT TX/RX Pulse Electronics Network	2728	5.53	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

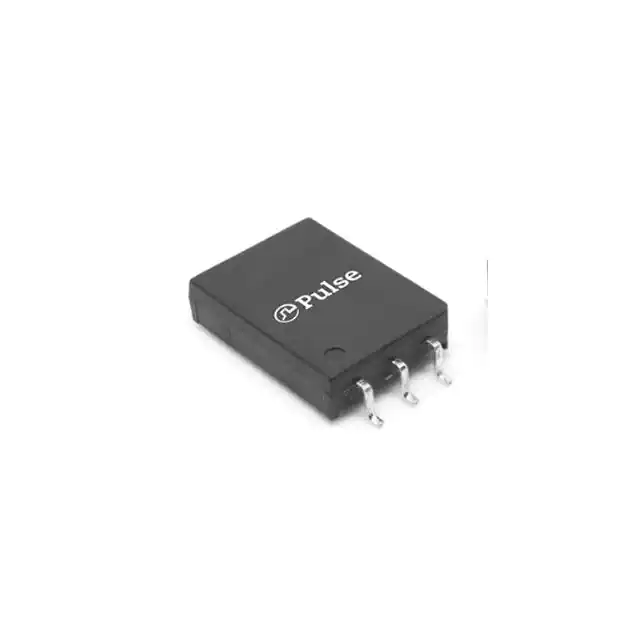

HM2113ZNLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	12191	5.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.354 L x 0.478 W (9.00mm x 12.15mm)	0.136 (3.45mm)
HM2103NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	12704	5.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.300 L x 0.265 W (7.62mm x 6.73mm)	0.225 (5.72mm)

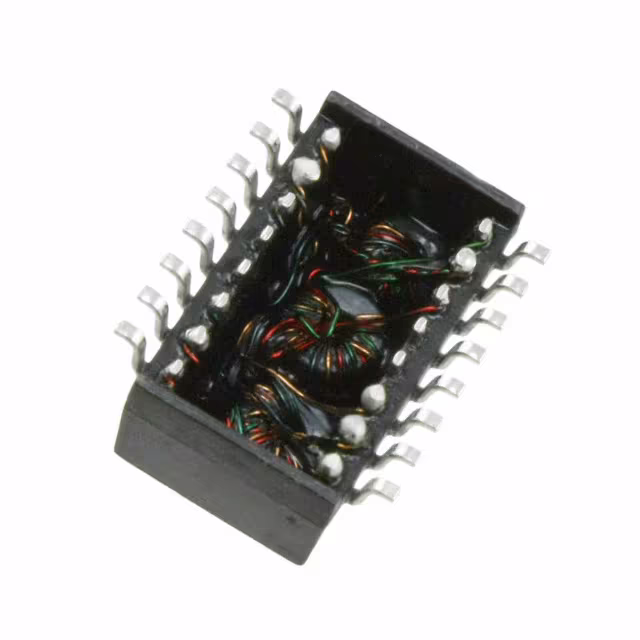

23Z467SMNLT TRANSFORMER 10BASE-T LAN 16SOIC Pulse Electronics Network	3115	5.14	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	140µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.450 L x 0.265 W (11.43mm x 6.73mm)	0.215 (5.46mm)
HX1098NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	7805	5.74	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.158 (4.01mm)
HX1198NLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics Network	2915	5.74	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

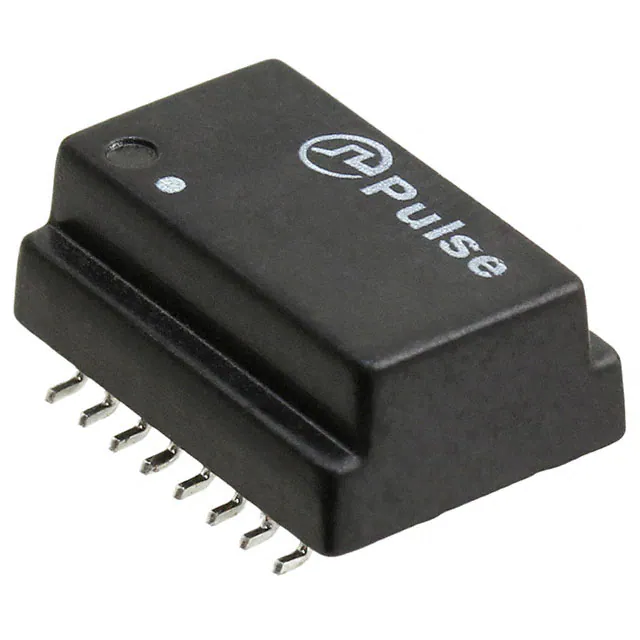

HX1198FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	5426	5.74	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
H1102NLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics Network	22671	5.31	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

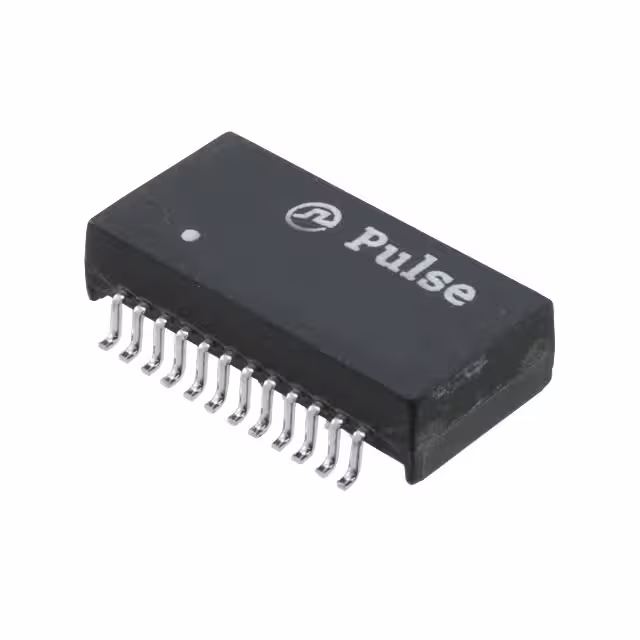

H5084NLT MODULE MAGNETIC 1PORT 1000BASE-T Pulse Electronics Network	2194	5.65	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.600 L x 0.300 W (15.24mm x 7.62mm)	0.163 (4.14mm)

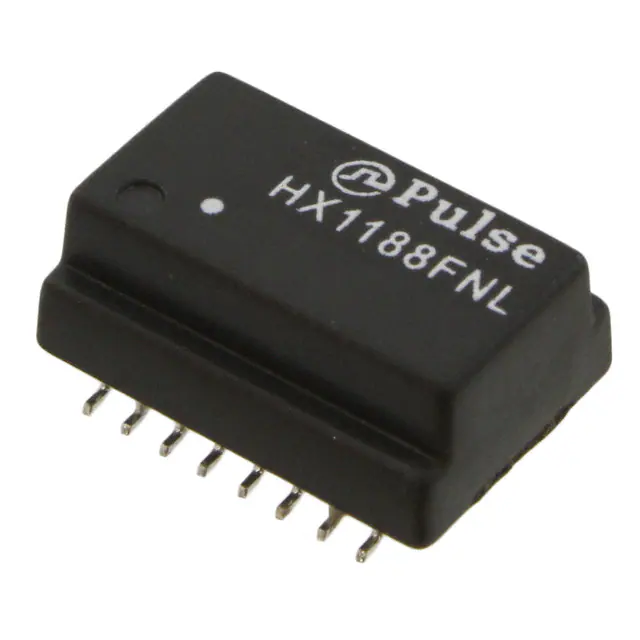

HX1188FNLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics Network	12699	5.68	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)

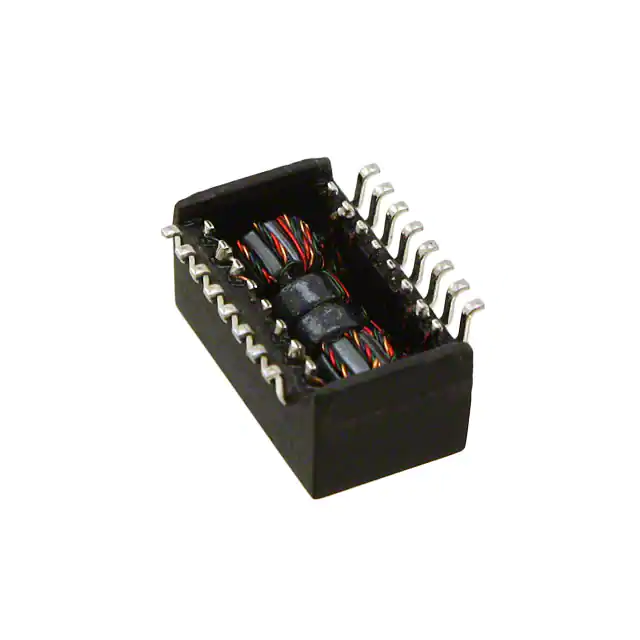

HX1188NLT XFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics Network	14537	5.68	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
H0013NLT MODULE MAGNETIC LAN 1:1 10/100 Pulse Electronics Network	3226	6.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.078 (1.98mm)
HX2019NLT XFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics Network	5528	6.68	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
HM1188NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	18894	6.94	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)

Total 3563 Records«Prev12 3 4...179 Next»
