Results:

Photo	Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

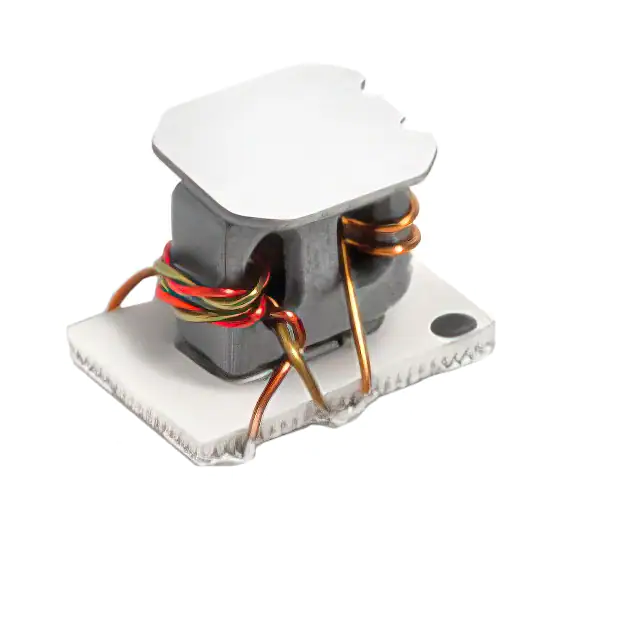

	UWB1-85EC TRANSFORMER COILCRAFT	400	11.83	- + Add To Cart Inquiry Now	Datasheet	Strip	UWB	Active	-	-	-	250mA	Single	Single	No	-	Surface Mount	Solder Pad	4.06mm L x 3.18mm W	3.18mm	-

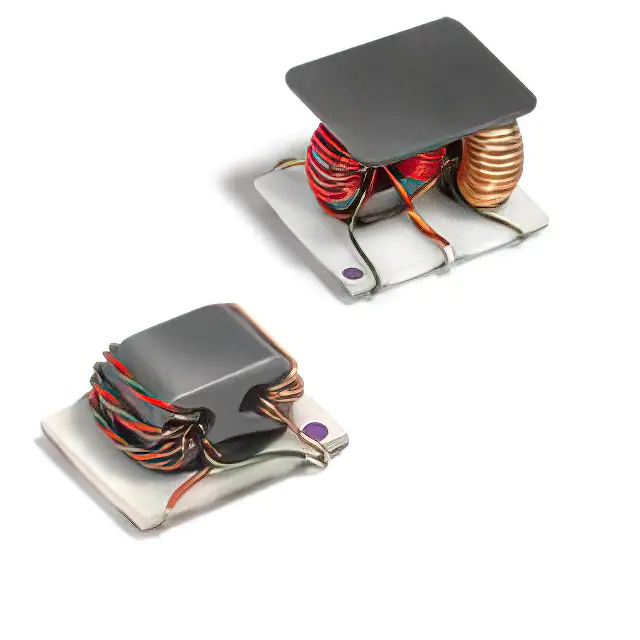

	ZB1201-CEC TRANSFORMER COILCRAFT	628	30.61	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	-	-	-	-	Single, Multiple Taps	Single	No	-	Surface Mount	Solder Pad	-	-	-
	ZB1200-DEC TRANSFORMER COILCRAFT	1755	8.51	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	-	-	-	-	Single	Single	No	-	Surface Mount	Solder Pad	-	-	-
	UWB2-50EC TRANSFORMER COILCRAFT	1208	11.83	- + Add To Cart Inquiry Now	Datasheet	Strip	UWB	Active	-	-	-	250mA	Single	Single	No	-	Surface Mount	Solder Pad	4.06mm L x 3.18mm W	3.18mm	-
	UWB4-45EC TRANSFORMER COILCRAFT	1808	11.83	- + Add To Cart Inquiry Now	Datasheet	Strip	UWB	Active	-	-	-	250mA	Single	Single	No	-	Surface Mount	Solder Pad	4.06mm L x 3.18mm W	3.18mm	-
