Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
HS1F2AS PWR XFMR LAMINATED 2000VA CHAS SolaHD	2403	358.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V, 480V	120V, 240V	16.7A	Dual	Dual	No	2000VA	Chassis Mount	Solder, Quick Connect	-	-	-
HS14F1BS PWR XFMR LAMINATED 1000VA CHAS SolaHD	3745	553.76	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	-	-	9.1A	Dual, Multiple Taps	Dual	No	1000VA	Chassis Mount	Solder, Quick Connect	152.40mm L x 127.00mm W	254.00mm	-
HS14F2BS PWR XFMR LAMINATED 2000VA CHAS SolaHD	3256	756.91	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	-	-	18.2A	Dual, Multiple Taps	Dual	No	2000VA	Chassis Mount	Solder, Quick Connect	-	-	-
HS14F3BS PWR XFMR LAMINATED 3000VA CHAS SolaHD	2964	987.58	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	-	-	-	Dual, Multiple Taps	Dual	No	3000VA	Chassis Mount	Solder, Quick Connect	-	-	-

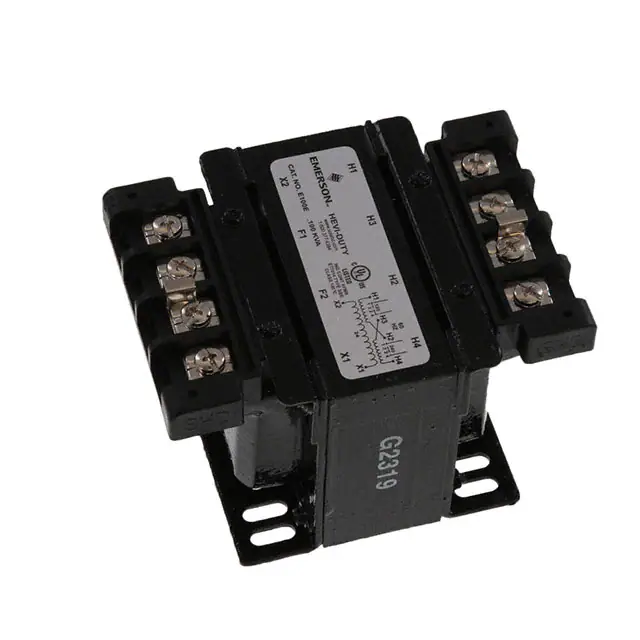

E100E PWR XFMR LAMINATED 100VA CHAS MT SolaHD	2349	87.06	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	120V, 240V	24V	-	Dual, Multiple Taps	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	-	-	-
HS1B250 PWR XFMR LAMINATED 250VA CHAS MT SolaHD	3821	111.72	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V, 480V	120V, 240V	2.08A	Dual	Dual	No	250VA	Chassis Mount	Solder, Quick Connect	-	-	-
HS1F500B PWR XFMR LAMINATED 500VA CHAS MT SolaHD	3944	155.21	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V, 480V	120V, 240V	4.16A	Dual	Dual	No	500VA	Chassis Mount	Solder, Quick Connect	152.40mm L x 127.00mm W	254.00mm	-
HS1F1.5AS PWR XFMR LAMINATED 1500VA CHAS SolaHD	2990	263.61	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V, 480V	120V, 240V	12.5A	Dual	Dual	No	1500VA	Chassis Mount	Solder, Quick Connect	-	-	-
HS12F3AS PWR XFMR LAMINATED 3000VA CHAS SolaHD	3012	689.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	-	120V, 240V	25A	Dual, Multiple Taps	Dual	No	3000VA	Chassis Mount	Solder, Quick Connect	-	-	-
E200 PWR XFMR LAMINATED 200VA CHAS MT SolaHD	2587	97.42	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	Dual, Multiple Taps	Single	Yes	200VA	Chassis Mount	Solder, Quick Connect	-	-	-

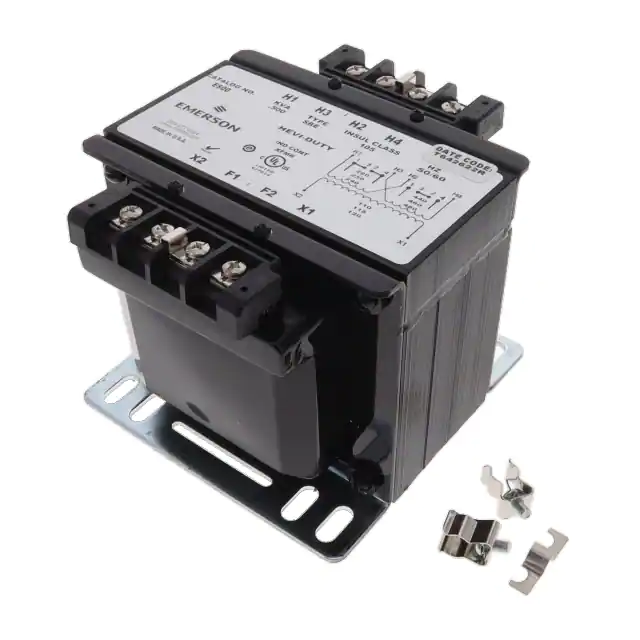

E500 PWR XFMR LAMINATED 50VA CHAS MT SolaHD	2122	162.35	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	Dual, Multiple Taps	Single	Yes	50VA	Chassis Mount	Solder, Quick Connect	-	-	-
E150TF PWR XFMR LAMINATED 150VA CHAS MT SolaHD	3834	201.86	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	Dual, Multiple Taps	Single, Multiple Taps	Yes	150VA	Chassis Mount	Solder, Quick Connect	-	-	-
E250TC PWR XFMR LAMINATED 250VA CHAS MT SolaHD	2414	291.35	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	Single, Multiple Taps	Single, Multiple Taps	Yes	250VA	Chassis Mount	Solder, Quick Connect	-	-	-
HS12F1BS PWR XFMR LAMINATED 1000VA CHAS SolaHD	2013	377.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	-	120V, 240V	8.33A	Dual, Multiple Taps	Dual	No	1000VA	Chassis Mount	Solder, Quick Connect	152.40mm L x 127.00mm W	254.00mm	-
E350EWA PWR XFMR LAMINATED 350VA CHAS MT SolaHD	3310	258.91	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	-	-	No	350VA	Chassis Mount	Solder, Quick Connect	133.40mm L x 128.80mm W	-	-

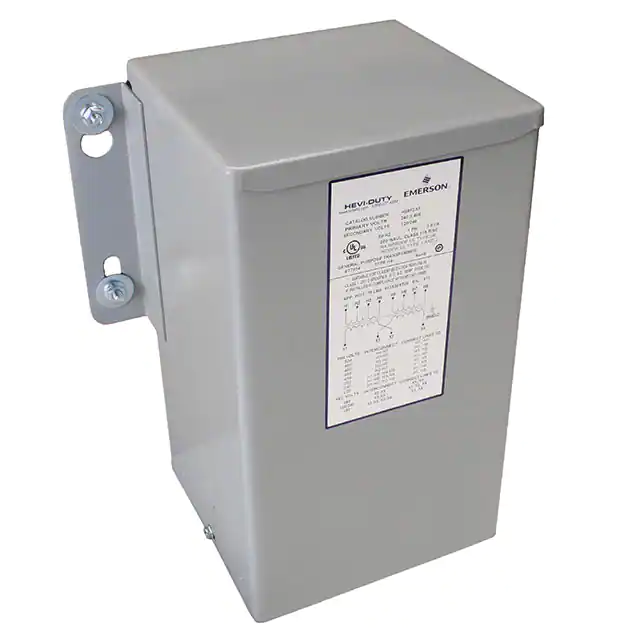

HS5F3AS PWR XFMR LAMINATED 3000VA CHAS SolaHD	3593	455.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V, 480V	120V, 240V	25A	Dual, Multiple Taps	Dual	No	3000VA	Chassis Mount	Solder, Quick Connect	-	12.00mm	-
HS1F1BS PWR XFMR LAMINATED 1000VA CHAS SolaHD	2662	226.96	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V, 480V	120V, 240V	8.33A	Dual	Dual	No	1000VA	Chassis Mount	Solder, Quick Connect	152.40mm L x 127.00mm W	254.00mm	-
CE2000TH PWR XFMR LAMINATED 2000VA CHAS SolaHD	2541	638.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	Ice International	Active	Laminated Core	-	-	-	Single, Multiple Taps	-	Yes	2000VA	Chassis Mount	Solder, Quick Connect	-	5.630 (143.00mm)	-
E050 PWR XFMR LAMINATED 50VA CHAS MT SolaHD	2483	57.43	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	Dual, Multiple Taps	Single	Yes	50VA	Chassis Mount	Solder, Quick Connect	101.30mm L x 76.50mm W	69.10mm	-

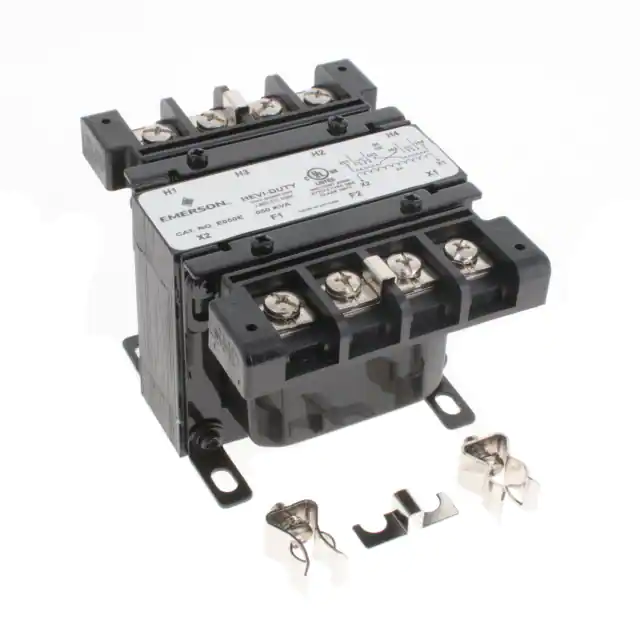

E050E PWR XFMR LAMINATED 50VA CHAS MT SolaHD	2484	64.83	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	120V, 240V	24V	-	Dual, Multiple Taps	Single	Yes	50VA	Chassis Mount	Solder, Quick Connect	101.30mm L x 76.50mm W	69.10mm	-

Total 420 Records«Prev12 3 4...21 Next»
