Photo	Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofChannels	Inputs-Side1/Side2	Voltage-Isolation	CommonModeTransientImmunity(Min)	InputType	OutputType	Current-Output/Channel	DataRate	PropagationDelaytpLH/tpHL(Max)	Rise/FallTime(Typ)	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	Voltage-Supply	OperatingTemperature	MountingType
	6N137S-TA1 OPTOISO 5KV 1CH OPEN COLL 8SMD Lite-On Inc.	2384	0.84	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector	50 mA	15MBd	75ns, 75ns	22ns, 6.9ns	1.38V	20mA	7V	-40°C ~ 85°C	Surface Mount
	6N137 OPTOISO 5KV 1CH OPEN COLL 8DIP Lite-On Inc.	2402	0.80	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector	50 mA	10MBd	75ns, 75ns	22ns, 6.9ns	1.38V	20mA	7V	-40°C ~ 85°C	Through Hole
	6N137S OPTOISO 5KV 1CH OPEN COLL 8SMD Lite-On Inc.	3130	0.81	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector	50 mA	15MBd	75ns, 75ns	22ns, 6.9ns	1.38V	20mA	7V	-40°C ~ 85°C	Surface Mount
	6N137M OPTOISO 5KV 1CH OPEN COLL 8DIP Lite-On Inc.	2595	0.26	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector	50 mA	15MBd	75ns, 75ns	22ns, 6.9ns	1.38V	20mA	7V	-40°C ~ 85°C	Through Hole

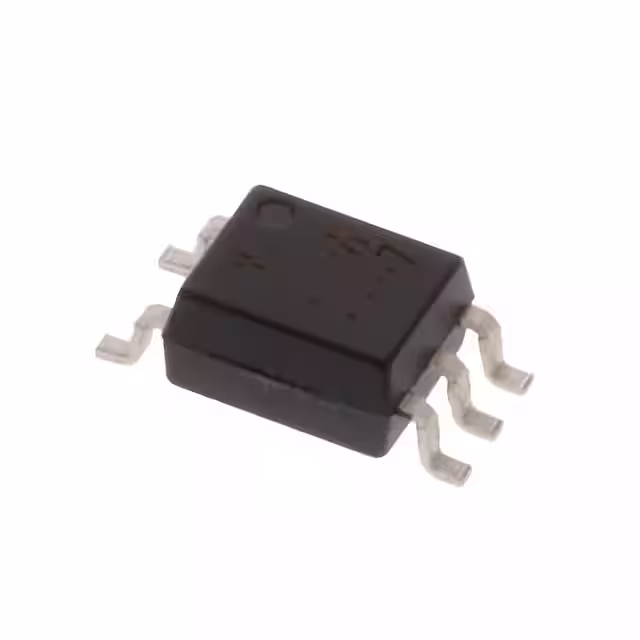

	LTV-M601 OPTOCOUPLER HS PHOTO TRANS 5SOP Lite-On Inc.	2060	0.54	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	75ns, 75ns	21ns, 7ns	1.38V	20mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
	LTV-0601 OPTOISO 3.75KV OPN COLLECTOR 8SO Lite-On Inc.	3069	0.68	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector	50 mA	15MBd	75ns, 75ns	22ns, 6.9ns	1.38V	20mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
