Photo	Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType

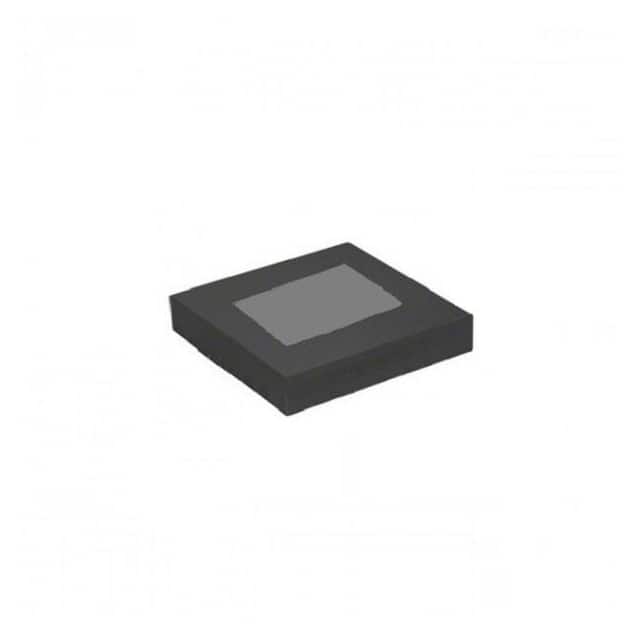

	ASNT5143-ALD IC GATE XOR ADJ 1CH 2IN 16LGA ADSANTEC	3750	625.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	XOR (Exclusive OR)	1	2	Adjustable Output Amplitude and Frequency Response, Heat Sink on Top	±2.9V ~ 3.3V	90 mA	90mA	0.1V ~ 0.8V	0V ~ 3.6V	-	-25°C ~ 125°C (TJ)	Surface Mount
	ASNT5040 IC GATE XOR CML 1CH 2-INP 24QFN ADSANTEC	123	250.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	XOR (Exclusive OR)	1	2	CML, Differential, Low Jitter	3.1V ~ 3.5V	125 mA	125mA	0.4V	-	-	-25°C ~ 85°C	Surface Mount
	ASNT5040-KMC 25GHZ DIFF. CML XOR LOGIC GATE ADSANTEC	2075	550.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	XOR (Exclusive OR)	1	4	-	3.1V ~ 3.5V	125 mA	-	-	-	-	-40°C ~ 125°C	Surface Mount
	ASNT5160-KHC 50GB BROADBAND AND OR LOGIC GATE ADSANTEC	2737	900.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	AND, OR	1	2	Low Jitter, CML, Differential	3.1V ~ 3.5V	85 mA	85mA	-	-	-	-25°C ~ 85°C	Surface Mount
	ASNT5140-KMC 30GHZ DIFF. CML XOR LOGIC GATE ADSANTEC	2875	975.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	XOR (Exclusive OR)	1	4	-	3.1V ~ 3.5V	85 mA	-	-	-	-	-40°C ~ 125°C	Surface Mount
