Manufacturer	Packaging	Series	ProductStatus	Type	Current-DCForward(If)(Max)	RadiantIntensity(Ie)Min@If	Wavelength	Voltage-Forward(Vf)(Typ)	ViewingAngle	Orientation	OperatingTemperature	MountingType
Advanced Photonix American Bright Optoelectronics Corporation American Opto Plus LED ams-OSRAM USA Inc. Asahi Kasei Microdevices/AKM Axetris Bivar Inc. Bridgelux Broadcom Limited CEL ChromeLED Crystal IS Everlight Electronics Co Ltd Excelitas Technologies Fairchild Semiconductor Harvatek Corporation Honeywell Sensing and Productivity Solutions ICP DAS USA INC Inolux Interlight Kingbright Light-Avenue Lite-On Inc. Lumex Opto/Components Inc. Lumileds Luminus Devices Inc. Marktech Optoelectronics NTE Electronics, Inc Omron Automation and Safety Omron Electronics Inc-EMC Div onsemi Opto Diode Corp OSRAM SYLVANIA Inc. P-tec Panasonic Electronic Components Parallax Inc. QT Brightek (QTB) Quelighting Corp Rohm Semiconductor Samsung Semiconductor, Inc. Seoul Semiconductor Inc. SETi/Seoul Viosys Sharp Microelectronics SHARP/Socle Technology Solidlite SparkFun Electronics Stanley Electric Co SunLED TE Connectivity AMP Connectors TE Connectivity Measurement Specialties TT Electronics/Optek Technology Vishay Semiconductor Opto Division Visual Communications Company - VCC Würth Elektronik XSSY	- Bag Box Bulk Bulk,Bulk Cut Tape (CT),Digi-Reel® Cut Tape (CT),Tape & Box (TB) Retail Package Strip Tape & Box (TB) Tape & Reel (TR) Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tray Tray,Tray Tube	* - .040 Multilock 10°LED 120°Radial LED 250 255 260 275 3030 3528 3535 3535 SMD LED 3535C1 40°Radial LED 50° /90°Radial LED 5°LED AB-3838EJ aluminum reflector LED ARE1-9F40-00000 ARE1-x5x0-00000 ARE1-xxxx-00000 ARE6-xxx1-0xx00 AREM-80C0-xx000 AREM-90C0-xx000 AREQ-8x20-xx000 AREQ-8xC0-xx000 AREQ-9x20-xx000 AREQ-9xC0-xx000 AT353AF AU3535A AU3535B AU3535C AU3535D Automotive, AEC-Q101 Automotive, AEC-Q101, SurfLight™ AUV3-Sxx2-0xx0K AUV4 AUV4-Sxx1-0xx0J C03 CA3535 CBM-40 CBT-39-UV CHIPLED EAIST3535A0 EAIST3535A1 EAIST3535A2 EAIST3535A3 EAIST3535A4 EAUVA2016 EAUVA35352 EAUVA35353 ELM-4000 ELM-5000 ELUA2016OGB ELUA3535NU3 ELUA3535NU6 ELUA3535OG5 ELUA3535OGB ELUC3535NUB EMC 3030 UV LED FIREFLY® Heli-R High Power HSDL-4400 HSDL-4420 IN-C33(X)TN UV IN-C33(X)TOIR IN-C35PU(X)TD UVC IN-C39(X)TK UVC IN-C39(X)TO UV IN-C40PU(X)TK UVC IN-C68QA(X)TM UV Infrared Emitter INV-KIT INV-P53CT IR Emitter Lamp LP-0650-011 LP-0850-011 LS-0370 LS-0405 LS-0450 LS-0470 LS-0505 LS-0525 LS-0730 LS-0810 LS-0880 LS-0905 LS-0940 LS-1050 LS-1300 LS-1550 LTPL-G35UVC LUXEON IR Compact LUXEON IR Domed LUXEON UV LUXEON UV FC1 LUXEON UV FC2 LUXEON UV U1 LUXEON UV U2 LUXEON Z UV LuxiGen™ LZ1 LuxiGen™ LZ4 LuxiGen™ LZC LuxiGen™ LZP LZ1 LZ4 LZC LZP M2M Mid Power MIDLED MIDLED® MIDLED® Mini MIDLED® T Mini BeamLED Mosaic Array MTE-F11 MTE-F13 MTE-H21 MTE-H32 MTE-H33 MTE-H41 OP265AA OP266AA OP290 OSLON® Black OSLON® P1616 OSLON® Piccolo OSLON® UV 3636 OSLON® UV 6060 OSLUX Ostar PicoLED™ Platinum DRAGON PLCC-4 Point Source Power TOPLED® PX Series QBHP4545 QBHP5050E-UVxxxBK QBHP684E-IR1500Y QBHP6868E-UVxxxK QBLP595 QBLP601 QBLP613 QBLP630 QBLP650 QBLP651 QBLP653 QBLP670 QBLP676 QBLP679 QBPH684E-UV QBTO46XY-UVZ QuasarBrite SADC SBM-120-UV SIDELED SPX 1189 SST-05-IR SST-06-IRD SST-10-IR SST-10-IRD SST-10-UV SST-10-UV Horticulture SurfLight™ SWDC SYNIOS® P2720 TO-18 TO46 LED TOPLED TZ UV 3030 UV LED UVB LED UVC LED VCSEL Visible Emitter Visible Red LED VSMB294008 VSMY2943 WD WL-SICW WL-SIMW WL-SIQW WL-SIRW WL-SISW WL-SITW WL-SUMW WL-TIRC WL-TIRW XST-3535-UV Horticulture	Active Discontinued at Mosen Last Time Buy Not For New Designs Obsolete Preliminary	- Infrared (IR) Infrared (IR), Visible Ultraviolet (UV) Visible	- 1.1A 1.25A 1.2A 1.4A 1.5A 1.6A 100mA 100mA (x2), 100mA (x2), 50mA (x2) 100mA (x6) 100mA, 100mA, 100mA, 50mA 100mA, 100mA, 50mA 10mA 120mA 12A 130mA 150mA 15mA 16A 180mA 18A 1A 1A (x4) 200mA 20mA 22.5A 24A 250mA 25mA 2A 3.2A 300mA 30A 30mA 350mA 3A 400mA 40mA 40mA, 30mA, 60mA 4A 500mA 50mA 50mA (x3) 50mA (x6) 50mA, 30mA 5A 600mA 60mA 60mA UVA, 120mA UVC 65mA 6A 700mA 70mA 750mA 75mA 800mA 80mA 80mA, 80mA, 80mA, 50mA, 50mA 8A 900mA	- 0.03mW/cm² @ 20mA 0.05mW/cm² @ 20mA 0.11mW/cm² @ 20mA 0.18mW/cm² @ 20mA 0.1mW/cm² @ 20mA 0.1mW/sr @ 20mA 0.27mW/cm² @ 20mA 0.28mW/cm² @ 20mA 0.28mW/sr @ 20mA 0.2mW/cm² @ 20mA 0.2mW/cm² @ 50mA 0.2mW/sr @ 20mA 0.32mW/sr @ 50mA 0.33mW/cm² @ 20mA 0.34mW/cm² @ 20mA 0.35mW/cm² @ 20mA 0.35mW/sr @ 20mA 0.36mW/cm² @ 20mA 0.36mW/cm² @ 4mA 0.3mW/cm² @ 20mA 0.3mW/cm² @ 50mA 0.3mW/sr @ 20mA 0.42mW/cm² @ 20mA 0.43mW/cm² @ 20mA 0.45mW/cm² @ 20mA 0.45mW/sr @ 50mA 0.47mW/sr @ 20mA 0.48mW/cm² @ 20mA 0.4mW/cm² @ 20mA 0.4mW/cm² @ 50mA 0.4mW/sr @ 20mA 0.50mW/cm² @ 100mA 0.50mW/sr @ 20mA 0.54mW/cm² @ 20mA 0.56mW/sr @ 20mA 0.57mW/sr @ 20mA 0.58mW/cm² @ 20mA 0.5mW/cm² @ 20mA 0.5mW/sr @ 100mA 0.5mW/sr @ 20mA 0.5mW/sr @ 20mA (Typ) 0.5mW/sr @ 50mA 0.63mW/sr @ 50mA 0.64mW/cm² @ 20mA 0.64mW/sr @ 20mA 0.65mW/cm² @ 20mA 0.662mW/sr @ 20mA 0.6mW/cm² @ 50mA 0.6mW/sr @ 20mA 0.6mW/sr @ 50mA 0.7mW/sr @ 20mA 0.7mW/sr @ 50mA 0.85mW/cm² @ 20mA 0.85mW/sr @ 20mA (Typ) 0.8mW/sr @ 10mA 0.8mW/sr @ 20mA 0.8mW/sr @ 20mA (Typ) 0.9mW/sr @ 20mA 1.05mW/cm² @ 20mA 1.1mW/cm² @ 20mA 1.1mW/sr @ 20mA 1.1mW/sr @ 20mA (Typ) 1.25mW/cm² @ 20mA (Typ) 1.25mW/sr @ 100mA 1.25mW/sr @ 20mA 1.2mW/cm² @ 20mA 1.2mW/cm² @ 50mA 1.2mW/sr @ 20mA 1.2mW/sr @ 50mA 1.2mW/sr @ 50mA (Typ) 1.38mW/sr @ 20mA 1.3mW/sr @ 50mA 1.4mW/cm² @ 20mA 1.5mW/cm² @ 100mA 1.5mW/cm² @ 20mA 1.5mW/sr @ 20mA 1.5mW/sr @ 50mA 1.64mW/sr @ 50mA 1.65mW/cm² @ 20mA 1.6mW/sr @ 100mA 1.6mW/sr @ 20mA 1.6mW/sr @ 40mA 1.7mW/cm² @ 20mA 1.7mW/sr @ 20mA 1.7mW/sr @ 50mA 1.8mW/cm² @ 50mA 1.8mW/sr @ 20mA 1.8mW/sr @ 50mA 1.95mW/cm² @ 20mA 1.9mW/sr @ 30mA 10.5mW/cm² @ 150mA (Typ) 1000mW/cm² @ 1000mA (Typ) 1000mW/sr @ 100mA 1000mW/sr @ 700mA 100mW/cm² @ 100mA (Typ) 100mW/sr @ 100mA 100mW/sr @ 100mA (Typ) 100mW/sr @ 1A 100mW/sr @ 20mA 100mW/sr @ 70mA 100mW/sr @ 70mA (Typ) 105mW/cm² @ 350mA (Typ) 10mW/cm² @ 70mA (Typ) 10mW/sr 10mW/sr @ 100mA 10mW/sr @ 150mA 10mW/sr @ 20mA 10mW/sr @ 50mA 10mW/sr @ 5mA 10mW/sr @ 70mA 11.2mW/sr @ 100mA 11.5mW/cm² @ 20mA 11.78mW/sr @ 50mA 1100mW/cm² @ 5000mA (Typ) 1100mW/sr @ 100mA 1100mW/sr @ 700mA 110mW/cm² @ 150mA (Typ) 110mW/sr @ 100mA 110mW/sr @ 350mA (Typ) 112.5mW/sr @ 100mA 1120mW/sr @ 1A 112mW/sr @ 1A 1150mW/sr @ 1A (Typ) 1190mW/sr @ 1A (Typ) 11mW/sr @ 100mA (Typ) 11mW/sr @ 20mA 11mW/sr @ 50mA (Typ) 11mW/sr @ 70mA 12.5mW/sr @ 100mA 12.5mW/sr @ 100mA (Typ) 1200mW/sr @ 1.5A 120mW 120mW/sr @ 100mA 120mW/sr @ 700mA (Typ) 124mW/sr @ 100mA 1250mW/sr @ 1A 125mW/sr @ 1A (Typ) 1270mW/sr @ 1A (Typ) 1270mW/sr @ 2A (Typ) 12mW/sr @ 100mA 12mW/sr @ 20mA 12mW/sr @ 50mA 12mW/sr @ 70mA 13.4mW/sr @ 70mA (Typ) 13.81mW/sr @ 50mA 1300mW/sr @ 1.5A 1300mW/sr @ 1A (Typ) 1300mW/sr @ 2A 130mW/sr @ 100mA 130mW/sr @ 1A 13mW/sr @ 100mA (Typ) 13mW/sr @ 150mA 13mW/sr @ 50mA 13mW/sr @ 70mA 14.4mW/sr @ 70mA (Typ) 1400mW/sr @ 1.5A 1400mW/sr @ 1A 140mW/cm² @ 100mA (Typ) 140mW/sr @ 100mA 145mW/sr @ 500mA 14mW/cm² @ 150mA (Typ) 14mW/sr @ 100mA 14mW/sr @ 500mA (Typ) 15.4W @ 1A 15.5mW/cm² @ 20mA 1500mW/cm² @ 3000mA (Typ) 1500mW/sr @ 2A 150mW/sr @ 100mA 150mW/sr @ 150mA 150mW/sr @ 1A 150mW/sr @ 1A (Typ) 150mW/sr @ 700mA 150mW/sr @ 700mA (Typ) 15mW/sr @ 100mA 15mW/sr @ 20mA 15mW/sr @ 30mA 15mW/sr @ 50mA 160mW/cm² @ 800mA (Typ) 160mW/sr @ 100mA 160mW/sr @ 1A 160mW/sr @ 1A (Typ) 160mW/sr @ 350mA 160mW/sr @ 350mA (Typ) 16mW/sr @ 100mA 16mW/sr @ 20mA 16mW/sr @ 70mA 170mW/sr @ 1A 175mW/sr @ 1A 175mW/sr @ 500mA 180mW/cm² @ 800mA (Typ) 180mW/sr @ 100mA (Typ) 180mW/sr @ 1A 180mW/sr @ 1A (Typ) 18mW 18mW/sr @ 100mA 18mW/sr @ 50mA 19.42mW/sr @ 50mA 190mW/sr @ 1A 1mW/cm² @ 100mA 1mW/cm² @ 20mA 1mW/cm² @ 50mA 1mW/sr @ 100mA 1mW/sr @ 20mA 1mW/sr @ 50mA 2.1mW/sr @ 20mA 2.1mW/sr @ 50mA (Typ) 2.25mW/sr @ 20mA 2.2mW/sr @ 20mA 2.2mW/sr @ 50mA 2.4mW/cm² @ 20mA 2.4mW/sr @ 20mA 2.57mW/sr @ 50mA 2.5mW/cm² @ 70mA 2.5mW/sr @ 100mA 2.5mW/sr @ 20mA 2.5mW/sr @ 40mA 2.5mW/sr @ 50mA 2.6mW/cm² @ 100mA 2.7mW/cm² @ 20mA 2.8mW/cm² @ 100mA (Typ) 2.8mW/cm² @ 20mA 2.8mW/sr @ 20mA 2.9mW/sr @ 20mA 200mW 200mW/cm² @ 500mA (Typ) 200mW/sr @ 100mA 200mW/sr @ 1A 200mW/sr @ 500mA 205mW/sr @ 1A 205mW/sr @ 1A (Typ) 20mW/cm² @ 20mA 20mW/cm² @ 20mA, 2.5mW/cm² @ 60mA 20mW/cm² @ 70mA (Typ) 20mW/sr @ 100mA 20mW/sr @ 20mA 20mW/sr @ 20mA (Typ) 20mW/sr @ 70mA 21.6mW/sr @ 300mA (Typ) 210mW/sr @ 1A (Typ) 210mW/sr @ 700mA (Typ) 215mW/sr @ 1A 21mW/sr @ 20mA 2200mW/sr @ 1A 220mW/sr @ 1A (Typ) 220mW/sr @ 350mA (Typ) 224mW/sr @ 1A 225mW/sr @ 1A 225mW/sr @ 500mA 22mW/cm² @ 70mA (Typ) 22mW/sr @ 100mA 22mW/sr @ 100mA (Typ) 22mW/sr @ 50mA 2300mW/sr @ 1A 230mW/sr @ 1A 23mW/sr @ 100mA (Typ) 2400mW/sr @ 1A 24mW/sr @ 50mA 250mW/cm² @ 500mA (Typ) 250mW/sr @ 100mA 250mW/sr @ 1A 250mW/sr @ 1A (Typ) 250mW/sr @ 350mA 250mW/sr @ 500mA 250mW/sr @ 700mA (Typ) 25mW/cm² @ 100mA (Typ) 25mW/cm² @ 70mA (Typ) 25mW/sr @ 100mA 25mW/sr @ 100mA (Typ) 25mW/sr @ 20mA 25mW/sr @ 50mA 25mW/sr @ 70mA 260mW/sr @ 1A (Typ) 26mW/sr @ 50mA 27.2mW/sr @ 50mA 270mW 270mW/sr @ 1A 270mW/sr @ 700mA 275mW/sr @ 500mA 27mW/sr @ 100mA 28.5mW/sr @ 100mA 280mW/cm² @ 800mA (Typ) 280mW/sr @ 1A 280mW/sr @ 1A (Typ) 280mW/sr @ 350mA (Typ) 28mW/sr @ 100mA 28mW/sr @ 350mA 295mW/sr @ 500mA 295mW/sr @ 500mA (Typ) 29mW/sr @ 350mA (Typ) 2mW/cm² @ 20mA (Typ) 2mW/sr @ 100mA 2mW/sr @ 20mA 2mW/sr @ 50mA 2mW/sr @ 60mA 3.15mW/sr @ 100mA 3.2mW/sr @ 30mA 3.2mW/sr @ 50mA 3.31mW/sr @ 20mA 3.4mW/sr @ 20mA 3.5mW/cm² @ 100mA 3.5mW/cm² @ 50mA 3.5mW/sr @ 100mA 3.5mW/sr @ 50mA 3.8mW/cm² @ 50mA (Typ) 3.8mW/sr @ 50mA 300mW/sr @ 100mA 300mW/sr @ 1A 300mW/sr @ 1A (Typ) 300mW/sr @ 500mA 30mW 30mW/cm² @ 350mA (Typ) 30mW/sr @ 100mA 30mW/sr @ 20mA 30mW/sr @ 250mA 30mW/sr @ 50mA 30mW/sr @ 70mA 310mW/sr @ 1A 310mW/sr @ 350mA (Typ) 31mW/sr @ 100mA 320mW/sr @ 1A 320mW/sr @ 1A (Typ) 320mW/sr @ 700mA (Typ) 325mW/sr @ 500mA 32mW/sr @ 100mA 32mW/sr @ 70mA 330mW/sr @ 500mA 330mW/sr @ 700mA (Typ) 335mW/sr @ 1A (Typ) 350mW/sr @ 100mA 350mW/sr @ 1A 350mW/sr @ 1A (Typ) 350mW/sr @ 500mA 350mW/sr @ 700mA 350mW/sr @ 700mA (Typ) 355mW/sr @ 1A 35mW/sr @ 100mA 35mW/sr @ 50mA 35mW/sr @ 70mA 35mW/sr @ 70mA (Typ) 360mW/sr @ 1A (Typ) 365mW/sr @ 350mA (Typ) 36mW/sr @ 100mA 36mW/sr @ 20mA 370mW/sr @ 1A 370mW/sr @ 2A (Typ) 370mW/sr @ 700mA (Typ) 375mW/sr @ 500mA 3800mW/sr @ 700mA 380mW/sr @ 350mA (Typ) 38mW/sr @ 100mA (Typ) 39mW/sr @ 100mA 39mW/sr @ 50mA 3mW 3mW/cm² @ 100mA 3mW/cm² @ 150mA (Typ) 3mW/cm² @ 350mA (Typ) 3mW/cm² @ 50mA (Typ) 3mW/sr @ 100mA 3mW/sr @ 20mA 3mW/sr @ 50mA 3mW/sr @ 70mA 4.3mW/sr @ 100mA 4.5mW/sr @ 20mA (Typ) 4.5mW/sr @ 50mA 4.5mW/sr @ 70mA (Typ) 4.81mW/sr @ 20mA 4.8mW/sr @ 20mA (Typ) 400mW/sr @ 100mA 400mW/sr @ 1A 400mW/sr @ 1A (Typ) 400mW/sr @ 700mA (Typ) 400mW/sr @ 70mA 40mW/cm² @ 70mA (Typ) 40mW/sr @ 100mA 40mW/sr @ 20mA (Typ) 40mW/sr @ 350mA 40mW/sr @ 500mA 40mW/sr @ 50mA 40mW/sr @ 70mA 410mW/sr @ 1A (Typ) 415mW/sr @ 1A 420mW/sr @ 1A 425mW/sr @ 1A 425mW/sr @ 500mA 435mW/sr @ 500mA 440mW/sr @ 1A 450mW/cm² @ 500mA (Typ) 450mW/sr @ 1A 450mW/sr @ 1A (Typ) 450mW/sr @ 500mA 45mW/cm² @ 250mA (Typ) 45mW/cm² @ 350mA (Typ) 45mW/sr @ 100mA 45mW/sr @ 50mA 45mW/sr @ 70mA 470mW/sr @ 500mA 475mW/sr @ 500mA 4800mW/sr @ 700mA 490mW/sr @ 1.5A 4mW/cm² @ 100mA 4mW/cm² @ 100mA (Typ) 4mW/cm² @ 70mA (Typ) 4mW/sr @ 100mA 4mW/sr @ 20mA 4mW/sr @ 50mA 4mW/sr @ 70mA 5.05mW/sr @ 50mA 5.3mW/cm² @ 100mA (Typ) 5.5mW/cm² @ 20mA 5.5mW/sr @ 20mA 5.5mW/sr @ 70mA 5.5mW/sr @ 70mA (Typ) 5.6mW/sr @ 20mA 5.6mW/sr @ 50mA 500mW/sr @ 1A 500mW/sr @ 2A 500mW/sr @ 500mA 50mW/cm² @ 100mA (Typ) 50mW/cm² @ 350mA (Typ) 50mW/cm² @ 70mA (Typ) 50mW/sr @ 100mA 50mW/sr @ 100mA (Typ) 50mW/sr @ 350mA 50mW/sr @ 40mA 50mW/sr @ 500mA 50mW/sr @ 50mA 50mW/sr @ 70mA 513mW/sr @ 350mA 515mW/sr @ 1.5A 525mW/sr @ 500mA 550mW/sr @ 100mA 550mW/sr @ 1A 550mW/sr @ 500mA 55mW/cm² @ 100mA (Typ) 55mW/sr @ 100mA 55mW/sr @ 50mA 55mW/sr @ 70mA 55mW/sr @ 70mA (Typ) 560mW/sr @ 1A 560mW/sr @ 1A (Typ) 56mW/sr @ 100mA 570mW/cm² @ 1000mA 575mW/sr @ 500mA 59mW/sr @ 350mA (Typ) 5mW/cm² @ 100mA 5mW/cm² @ 40mA (Typ) 5mW/cm² @ 50mA 5mW/cm² @ 70mA (Typ) 5mW/sr @ 100mA 5mW/sr @ 20mA 5mW/sr @ 20mA (Typ) 5mW/sr @ 350mA (Typ) 5mW/sr @ 50mA 5mW/sr @ 70mA 6.02mW/sr @ 20mA 6.3mW/sr @ 100mA 6.3mW/sr @ 70mA 6.5mW/cm² @ 100mA 6.5mW/cm² @ 30mA (Typ) 6.5mW/cm² @ 50mA (Typ) 6.5mW/sr @ 100mA (Typ) 6.5mW/sr @ 20mA 6.5mW/sr @ 20mA (Typ) 6.77mW/sr @ 20mA 60mW 60mW/sr @ 100mA 60mW/sr @ 100mA (Typ) 60mW/sr @ 500mA 60mW/sr @ 50mA 60mW/sr @ 70mA 625mW/sr @ 500mA 630mW/sr @ 1.5A 630mW/sr @ 100mA 630mW/sr @ 1A 63mW/sr @ 100mA 63mW/sr @ 70mA 640mW/sr @ 1A 650mW/sr @ 500mA 65mW/sr @ 100mA 67.2mW/sr @ 50mA 675mW/sr @ 500mA 680mW/sr @ 1A 6mW 6mW/cm² @ 70mA (Typ) 6mW/sr @ 100mA 6mW/sr @ 20mA 6mW/sr @ 50mA 6mW/sr @ 60mA 7.0mW/cm² @ 100mA 7.5mW/cm² @ 100mA (Typ) 7.5mW/cm² @ 150mA (Typ) 7.5mW/cm² @ 20mA 7.5mW/cm² @ 30mA (Typ) 7.5mW/cm² @ 50mA (Typ) 7.5mW/sr @ 20mA 7.5mW/sr @ 50mA 7.8mW/sr @ 20mA 700mW/cm² @ 700mA (Typ) 700mW/sr @ 1.2A 700mW/sr @ 1A (Typ) 70mW/sr @ 100mA 70mW/sr @ 350mA 70mW/sr @ 350mA (Typ) 71.5mW/sr @ 100mA 710mW/sr @ 1A 71mW/sr @ 100mA 740mW/sr @ 500mA 750mW/cm² @ 1000mA (Typ) 750mW/sr @ 1A 750mW/sr @ 1A (Typ) 750mW/sr @ 500mA 755mW/sr @ 700mA 75mW/sr @ 100mA 76mW/sr @ 100mA 770mW/sr @ 1A (Typ) 780mW/sr @ 1.5A 780mW/sr @ 1A 780mW/sr @ 1A (Typ) 786mW/sr @ 1A 790mW/sr @ 1A (Typ) 7mW/sr @ 1000mA 7mW/sr @ 100mA 7mW/sr @ 20mA 7mW/sr @ 50mA 7mW/sr @ 70mA 8.4mW/sr @ 50mA 8.5mW/cm² @ 100mA 8.5mW/sr @ 50mA 800mW/cm² @ 1000mA (Typ) 800mW/sr @ 1.5A 800mW/sr @ 1A 800mW/sr @ 1A (Typ) 80mW/cm² @ 70mA (Typ) 80mW/sr @ 100mA 815mW/sr @ 1A 830mW/sr @ 500mA 830mW/sr @ 700mA 850mW/cm² @ 1000mA (Typ) 85mW/sr @ 100mA 875mW/sr @ 1.5A 8mW/cm² @ 100mA (Typ) 8mW/cm² @ 150mA (Typ) 8mW/sr @ 100mA 8mW/sr @ 100mA (Typ) 8mW/sr @ 20mA 8mW/sr @ 50mA 9.62mW/sr @ 20mA 9.72mW/sr @ 20mA 9.9mW/sr @ 50mA 900mW/cm² @ 1000mA (Typ) 900mW/sr @ 1A 90mW 90mW/sr @ 100mA 90mW/sr @ 70mA 910mW/sr @ 500mA 910mW/sr @ 700mA 92mW/sr @ 100mA (Typ) 950mW/cm² @ 1000mA (Typ) 950mW/cm² @ 700mA (Typ) 95mW/sr @ 50mA 95mW/sr @ 50mA (Typ) 975mW/sr @ 1.5A 9mW/sr @ 100mA 9mW/sr @ 50mA 9mW/sr @ 50mA (Typ)	- 1020nm 1040nm 1050nm 1050nm (1030nm ~ 1070nm) 1060nm 1070nm 1200nm 1300nm 1300nm (1270nm ~ 1330nm) 1300nm, 950nm, 850nm, 670nm 1450nm 1460nm 1500nm 1550nm 1550nm (1510nm ~ 1590nm) 1650nm 1720nm 250nm (245nm ~ 255nm) 255nm 255nm (250nm ~ 260nm) 260nm (255nm ~ 265nm) 260nm ~ 270nm 265nm 265nm ~ 280nm 265nm ~ 285nm 270nm ~ 280nm 270nm ~ 285nm 272nm 272nm (265nm ~ 278nm) 273nm (265nm ~ 280nm) 273nm (268nm ~ 278nm) 273nm (270nm ~ 280nm) 274nm (270nm ~ 280nm) 275nm 275nm (270nm ~ 280nm) 277nm 278nm 278nm (265nm ~ 285nm) 280nm 285nm 295nm 300nm ~ 315nm 310nm 325nm 340nm 345nm 355nm 357nm 3600nm 362nm 365nm 365nm (360nm ~ 370nm) 365nm ~ 370nm 365nm ~ 375nm 365nm, 370nm 367nm 367nm (360nm ~ 370nm) 368nm 368nm (365nm ~ 370nm) 369nm 370nm 370nm (365nm ~ 375nm) 370nm ~ 375nm 375nm 375nm ~ 380nm 377nm 378nm 380nm 380nm ~ 385nm 380nm ~ 390nm 380nm, 385nm 382nm 383nm 383nm (380nm ~ 385nm) 385nm 385nm (380nm ~ 390nm) 385nm ~ 390nm 385nm ~ 405nm 385nm ~ 410nm 388nm (385nm ~ 390nm) 390nm 390nm ~ 395nm 390nm ~ 400nm 390nm, 395nm 393nm (390nm ~ 395nm) 395nm 395nm (390nm ~ 400nm) 395nm ~ 400nm 398nm (395nm ~ 400nm) 400nm 400nm UVA, 275nm UVC 400nm ~ 405nm 400nm ~ 410nm 400nm, 405nm 402nm 403nm 403nm (400nm ~ 405nm) 405nm 405nm (400nm ~ 410nm) 405nm ~ 410nm 408nm (405nm ~ 410nm) 410nm 410nm ~ 415nm 410nm ~ 420nm 415nm 415nm (410nm ~ 420nm) 415nm ~ 420nm 420nm 420nm ~ 425nm 425nm 425nm (420nm ~ 430nm) 425nm ~ 430nm 4300nm 430nm 447nm 450nm 450nm (445nm ~ 455nm) 457nm ~ 463nm 460nm 460nm (x3), 400nm 470nm 470nm (465nm ~ 475nm) 470nm (467nm ~ 473nm) 502nm 520nm 525nm 525nm (515nm ~ 535nm) 527nm 562nm 570nm 574nm 590nm 595nm 597nm 600nm 610nm 620nm 630nm 635nm 640nm 643nm 650nm 650nm (640nm ~ 660nm) 660nm 660nm, 526nm, 950nm 663nm, 905nm 680nm 685nm 690nm 700nm 720nm 730nm 730nm (720nm ~ 740nm) 735nm 740nm 755nm 760nm 765nm 770nm 770nm (x3) 770nm (x6) 771nm 780nm 785nm 810nm 810nm (805nm ~ 820nm) 815nm 820nm 830nm 835nm 845nm 850nm 850nm (840nm ~ 870nm) 850nm (x2), 810nm (x2), 770nm (x2) 850nm ~ 860nm 850nm, 810nm, 770nm 853nm 855nm 856nm 860nm 860nm, 950nm 870nm 875nm 880nm 880nm (870nm ~ 885nm) 880nm (x6) 880nm, 660nm 885nm 890nm 890nm (870nm ~ 910nm) 890nm (875nm ~ 905nm) 900nm 905nm 905nm (895nm ~ 915nm) 905nm, 660nm 920nm 935nm 940nm 940nm (920nm ~ 960nm) 940nm (930nm ~ 950nm) 940nm, 660nm 940nm, 880nm, 660nm 940nm, 905nm, 660nm 943nm 945nm 950nm 950nm (x6) 950nm, 810nm, 670nm 950nm, 850nm, 810nm, 770nm, 670nm 980nm	- 0.75V 0.7V 0.85V 0.86V 0.87V 0.8V 0.8V, 1.25V, 1.45V, 1.8V 0.91V 0.92V 0.93V 0.95V 0.96V 0.99V 0.9V 1.03V 1.05V 1.06V 1.08V 1.15V 1.18V 1.1V 1.22V 1.24V 1.25V 1.25V, 1.45V, 1.5V, 1.65V, 1.8V 1.25V, 1.6V, 1.8V 1.27V 1.28V 1.28V, 1.5V 1.29V 1.2V 1.2V, 1.8V 1.2V, 2.1V 1.2V, 2.6V 1.32V 1.33V 1.34V 1.35V 1.38V 1.3V 1.3V (x6) 1.3V, 1.2V, 1.8V 1.3V, 1.5V, 1.8V 1.3V, 1.8V 1.3V, 2.1V, 3V 1.42V 1.44V 1.45V 1.46V 1.475V 1.48V 1.49V 1.4V 1.4V (x2), 1.55V (x2), 1.6V (x2) 1.4V (x6) 1.4V, 1.55V, 1.6V 1.4V, 2V 1.52V 1.55V 1.56V 1.58V 1.59V 1.5V 1.5V (Max) 1.5V, 1.6V 1.65V 1.66V 1.675V 1.6V 1.6V (Max) 1.6V (x3) 1.6V (x6) 1.75V 1.79V 1.7V 1.7V (Max) 1.85V 1.8V 1.8V (Max) 1.8V, 1.26V 1.95V 1.9V 10V (Max) 11.6V 11.7V 11.9V 12.4V 12V 13.1V 13.2V 13.4V 13.5V 14.5V 14.8V 14V 15.2V 15.5V 16.4V 17.85V 18V 1V 2.05V 2.0V 2.1V 2.2V 2.3V 2.4V 2.5V 2.65V 2.75V 2.7V 2.85V 2.8V 2.95V 2.9V 20.2V 20.9V 21V 22V 25.5V 2V 3.05V 3.15V 3.1V 3.25V 3.2V 3.35V 3.3V 3.42V 3.45V 3.4V 3.55V 3.5V 3.6V 3.7V 3.8V 3.9V 3.9V, 10.5V (x3) 3V 3V, 6V 4.1V 4.2V 4.3V 4.55V 4.5V 42V 43.5V 44V 49V 4V 5.2V 5.5V 5.6V 5.7V 5.85V 5.8V 5V 6.25V 6.2V 6.3V 6.45V 6.5V 6.6V 6.75V 6.8V 6V 7.2V 7.4V 7.5V 7.6V 7.8V 7V 8V 8V (Max) 9V	- 100° 104° 105° 10° 110° 110° x 90° 112° 113° 114° 115° 116° 117° 11° 120° 125° 126° 12° 130° 135° 138° 140° 145° 14° 150° 15° 160° 16° 17° 180° 18° 200° 20° 20°, 70° 22° 240° 24° 25° 26° 28° 30° 32° 34° 35° 35°, 65° 36° 37° 38° 4.5° 40° 42° 44° 45° 46° 48° 4° 50° 50°/90° 54° 55° 55°, 80° 56° 5° 60° 60°/120° 62.5° 62° 64° 65° 66° 66°/86° 68° 6° 70° 72° 74° 75° 76° 7° 80° 85° 8° 90° 95° 97°	- Side View Side View, Dual Top View Universal	- -10°C ~ 100°C -10°C ~ 50°C -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 80°C (TC) -10°C ~ 85°C -10°C ~ 85°C (TA) -20°C ~ 100°C (TA) -20°C ~ 60°C -20°C ~ 70°C (TA) -20°C ~ 80°C -20°C ~ 80°C (TA) -20°C ~ 85°C -20°C ~ 85°C (TA) -20°C ~ 90°C (TA) -25°C ~ 100°C (TA) -25°C ~ 50°C -25°C ~ 60°C (TA) -25°C ~ 65°C (TA) -25°C ~ 75°C -25°C ~ 80°C (TA) -25°C ~ 85°C -25°C ~ 85°C (TA) -30°C ~ 100°C -30°C ~ 100°C (TA) -30°C ~ 125°C (TC) -30°C ~ 60°C -30°C ~ 80°C (TA) -30°C ~ 85°C -30°C ~ 85°C (TA) -30°C ~ 85°C (TC) -40°C ~ 100°C -40°C ~ 100°C (TA) -40°C ~ 105°C -40°C ~ 105°C (TA) -40°C ~ 110°C -40°C ~ 110°C (TA) -40°C ~ 120°C -40°C ~ 120°C (TA) -40°C ~ 120°C (TC) -40°C ~ 125°C -40°C ~ 125°C (TA) -40°C ~ 125°C (TJ) -40°C ~ 135°C -40°C ~ 135°C (TA) -40°C ~ 135°C (TJ) -40°C ~ 60°C -40°C ~ 65°C -40°C ~ 70°C (TA) -40°C ~ 80°C -40°C ~ 80°C (TA) -40°C ~ 85°C -40°C ~ 85°C (TA) -40°C ~ 90°C (TA) -40°C ~ 95°C (TA) -45°C ~ 85°C (TA) -55°C ~ 100°C -55°C ~ 100°C (TA) -55°C ~ 125°C (TA) -5°C ~ 55°C -5°C ~ 55°C (TC) -65°C ~ 125°C -65°C ~ 125°C (TA) -65°C ~ 150°C (TA) 0°C ~ 35°C 0°C ~ 40°C 0°C ~ 50°C (TA) 0°C ~ 70°C (TA) 100°C 100°C (TJ) 105°C (TJ) 110°C 115°C 115°C (TJ) 120°C (TJ) 125°C 125°C (TJ) 130°C (TJ) 145°C (TJ) 150°C (TJ) 60°C (TC) 65°C (TJ) 70°C (TJ) 95°C 95°C (TJ)	- Chassis Mount Heat Sink Screw Mount Surface Mount Surface Mount, Bottom Entry Surface Mount, Right Angle Through Hole Through Hole, Right Angle

Reset All

Apply All

Results:

Photo	Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Current-DCForward(If)(Max)	RadiantIntensity(Ie)Min@If	Wavelength	Voltage-Forward(Vf)(Typ)	ViewingAngle	Orientation	OperatingTemperature	MountingType

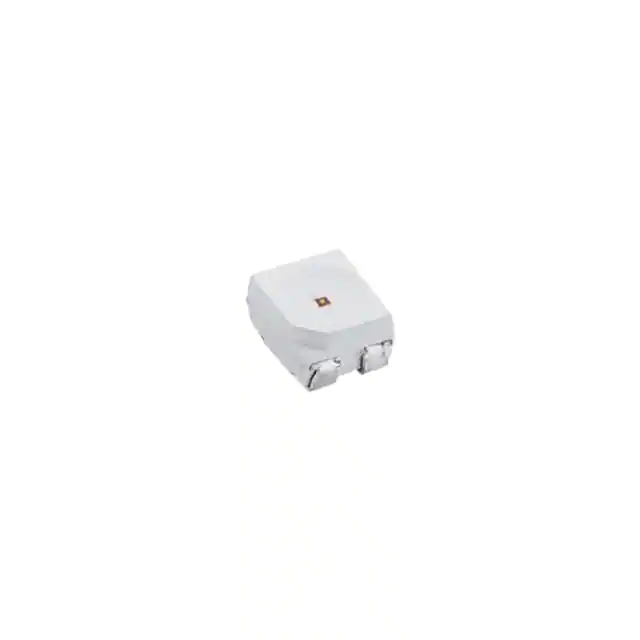

	QLIR05DYAM 3528 PACKAGE IR LED, PLCC4, TOP Quelighting Corp	3953	0.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLCC-4	Active	Infrared (IR)	100mA	10mW/sr @ 100mA	940nm	1.5V	-	Top View	-40°C ~ 85°C	Surface Mount
	QLIR05BYAM 3528 PACKAGE IR LED, PLCC4, TOP Quelighting Corp	3543	0.51	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLCC-4	Active	Infrared (IR)	100mA	10mW/sr @ 100mA	850nm	1.5V	-	Top View	-40°C ~ 85°C	Surface Mount

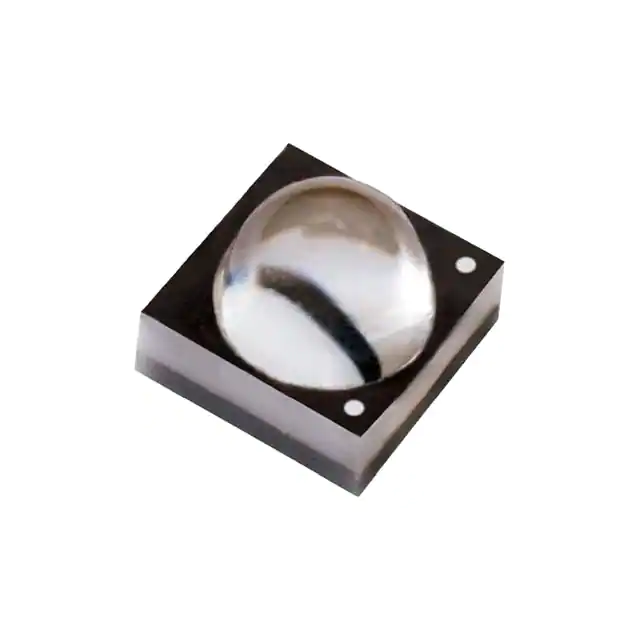

	QLUV07J3QCV 3535 PACKAGE UV LED, QUATZ GLASS Quelighting Corp	844	4.93	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UV LED	Active	Ultraviolet (UV)	1A	830mW/sr @ 700mA	400nm ~ 405nm	3.5V	60°	Top View	-40°C ~ 85°C	Surface Mount
	QLIR05FYAM 3528 PACKAGE IR LED, PLCC4, TOP Quelighting Corp	3938	3.06	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLCC-4	Active	Infrared (IR)	100mA	2mW/sr @ 100mA	1300nm	1.5V	-	Top View	-40°C ~ 85°C	Surface Mount
	QLUV07M3QCV 3535 PACKAGE UV LED, QUATZ GLASS Quelighting Corp	354	7.18	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UV LED	Active	Ultraviolet (UV)	1A	755mW/sr @ 700mA	365nm ~ 370nm	3.7V	60°	Top View	-40°C ~ 85°C	Surface Mount

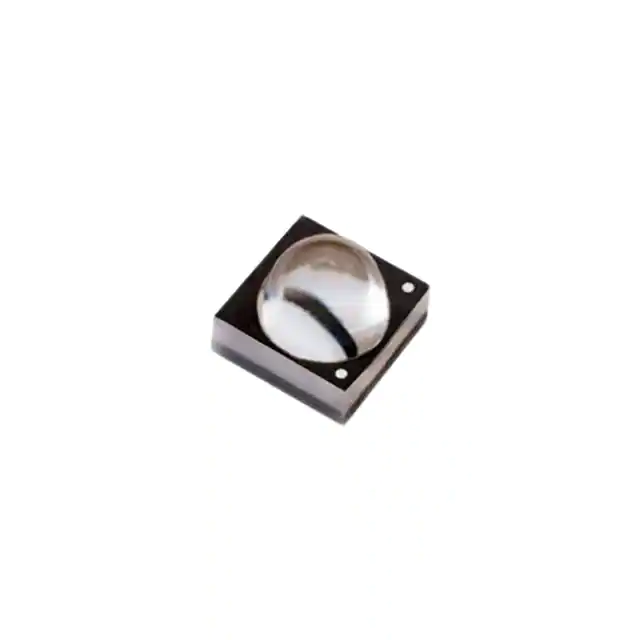

	QLUV07N2DM 3535 PACKAGE UV LED, QUARTZ GLAS Quelighting Corp	432	9.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UVC LED	Active	Ultraviolet (UV)	150mA	8mW/sr @ 100mA	265nm ~ 285nm	7V	35°	Top View	-40°C ~ 85°C	Surface Mount

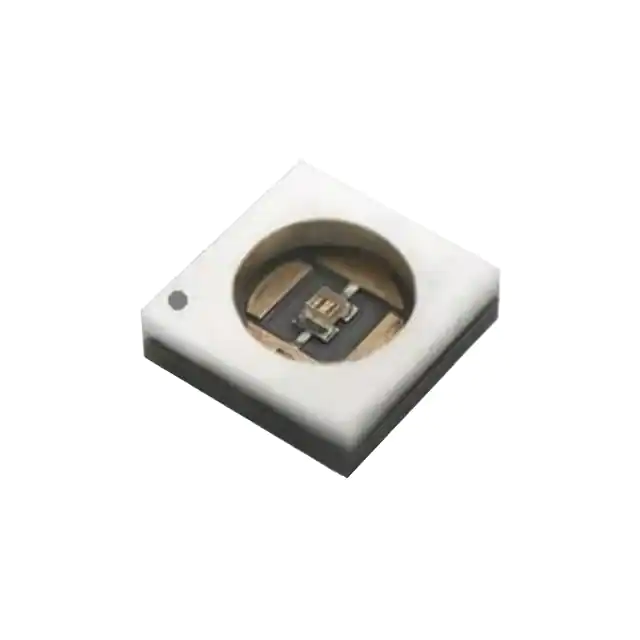

	QLUV07N2EM 3535 PACKAGE UV LED, QUARTZ GLAS Quelighting Corp	477	10.47	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UVC LED	Active	Ultraviolet (UV)	150mA	8mW/sr @ 100mA	265nm ~ 280nm	7V	130°	Top View	-40°C ~ 85°C	Surface Mount

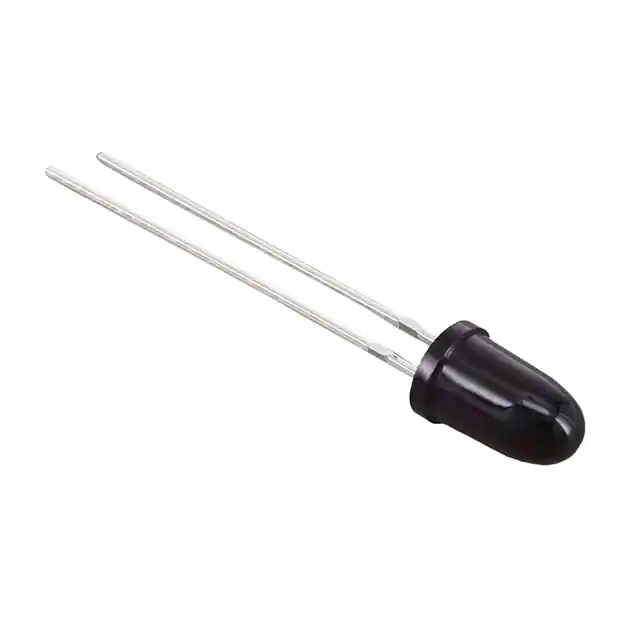

	QLIR01BYGM 5MM THROUGH HOLE PACKAGE IR LED Quelighting Corp	733	733.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Infrared (IR)	200mA	250mW/sr @ 100mA	860nm	1.5V	20°	-	-40°C ~ 85°C

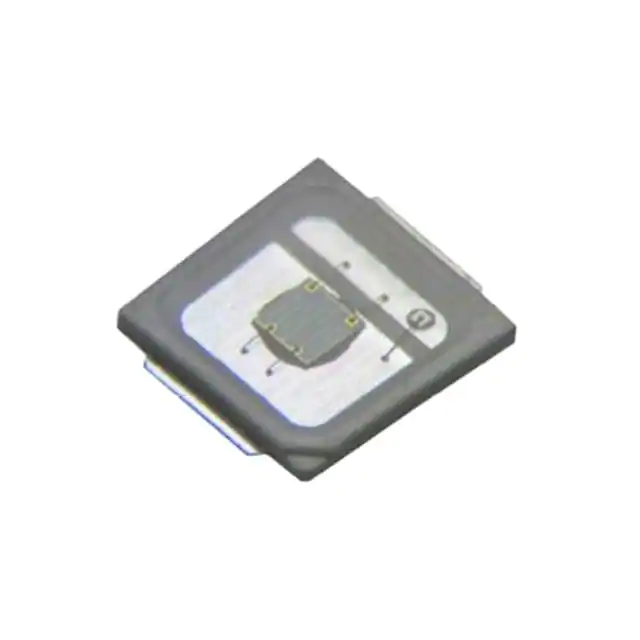

	QLUV04J3U 3030 PACKAGE UV LED, TOP VIEW, 4 Quelighting Corp	899	1.76	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMC 3030 UV LED	Active	Ultraviolet (UV)	700mA	310mW/sr @ 350mA (Typ)	405nm (400nm ~ 410nm)	3.2V	120°	Top View	-40°C ~ 85°C	Surface Mount

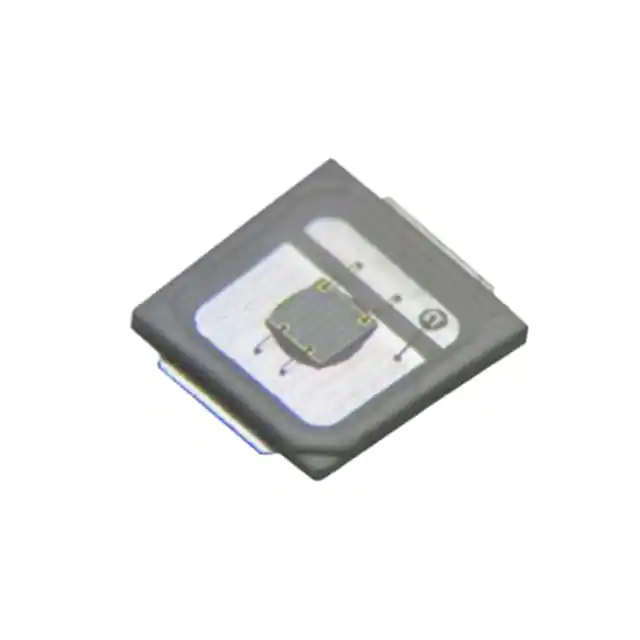

	QLUV04H3U 3030 PACKAGE UV LED, TOP VIEW, 4 Quelighting Corp	823	1.76	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EMC 3030 UV LED	Active	Ultraviolet (UV)	700mA	365mW/sr @ 350mA (Typ)	425nm (420nm ~ 430nm)	3.2V	120°	Top View	-40°C ~ 85°C	Surface Mount
	QLUV07N3GEU 3535 PACKAGE UV LED, QUARTZ GLAS Quelighting Corp	3966	28.89	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UVC LED	Active	Ultraviolet (UV)	500mA	50mW/sr @ 500mA	270nm ~ 280nm	6.5V	130°	Top View	-40°C ~ 85°C	Surface Mount
	QLUV07EYGE 3535 PACKAGE UV LED, QUARTZ GLAS Quelighting Corp	3930	7.37	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UVB LED	Active	Ultraviolet (UV)	30mA	2mW/sr @ 20mA	300nm ~ 315nm	6.5V	130°	Top View	-40°C ~ 85°C	Surface Mount
