Results:

Photo	Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle
	NSE10DH127 ROTARY ENCODER MECHANICAL 12PPR C&K	2316	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE10	Obsolete	Mechanical	Quadrature (Incremental)	12	-	-	Yes	No	PCB, Through Hole	Right Angle	PC Pin
	NSE10DH129 ROTARY ENCODER MECHANICAL 12PPR C&K	2704	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE10	Obsolete	Mechanical	Quadrature (Incremental)	12	-	-	Yes	No	PCB, Through Hole	Right Angle	PC Pin
	NSE10DH1211 ROTARY ENCODER MECHANICAL 12PPR C&K	2570	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE10	Obsolete	Mechanical	Quadrature (Incremental)	12	-	-	Yes	No	PCB, Through Hole	Right Angle	PC Pin

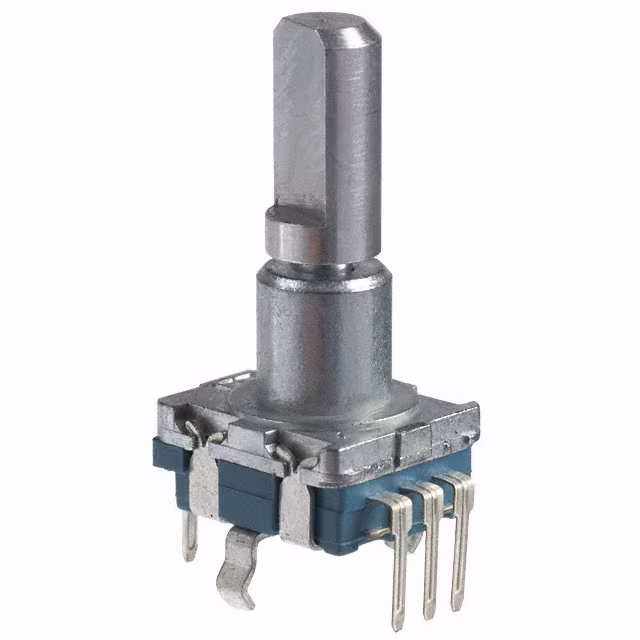

	NSE11DV57NCF215A ROTARY ENCODER MECHANICAL 15PPR C&K	2739	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE11	Obsolete	Mechanical	Quadrature (Incremental)	15	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
	NSE11DV57NCF220A ROTARY ENCODER MECHANICAL 20PPR C&K	3985	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE11	Obsolete	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin

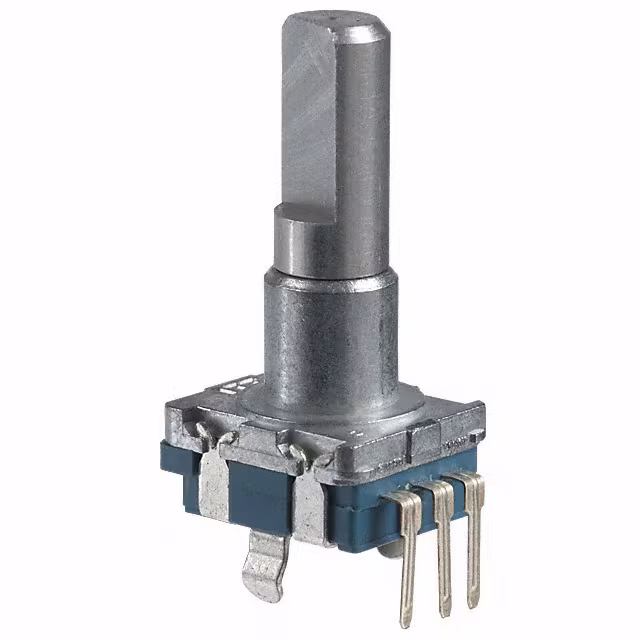

	NSE11DSV57NAF215A ROTARY ENCODER MECHANICAL 15PPR C&K	3708	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE11	Obsolete	Mechanical	Quadrature (Incremental)	15	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
	NSE11DSV57NAF220A ROTARY ENCODER MECHANICAL 20PPR C&K	2584	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE11	Obsolete	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
	NSE11DSV57NAF215F ROTARY ENCODER MECHANICAL 15PPR C&K	3797	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE11	Obsolete	Mechanical	Quadrature (Incremental)	15	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
	NSE11DSV57NAF220F ROTARY ENCODER MECHANICAL 20PPR C&K	3232	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE11	Obsolete	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin

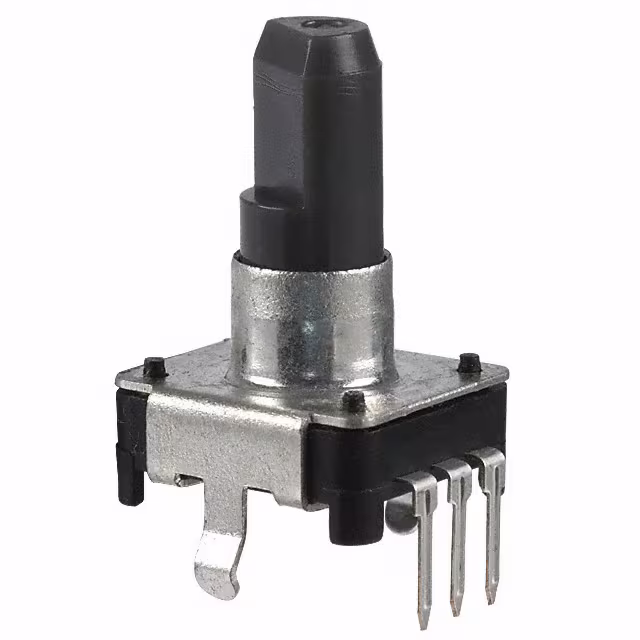

	NSE12DV1220 ROTARY ENCODER MECHANICAL 12PPR C&K	2770	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
	NSE12DV2420 ROTARY ENCODER MECHANICAL 24PPR C&K	2152	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin

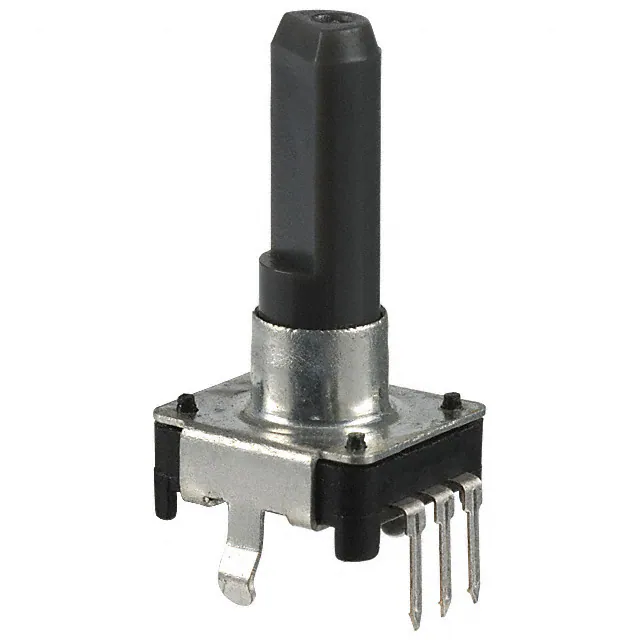

	NSE12DV1225 ROTARY ENCODER MECHANICAL 12PPR C&K	2452	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin

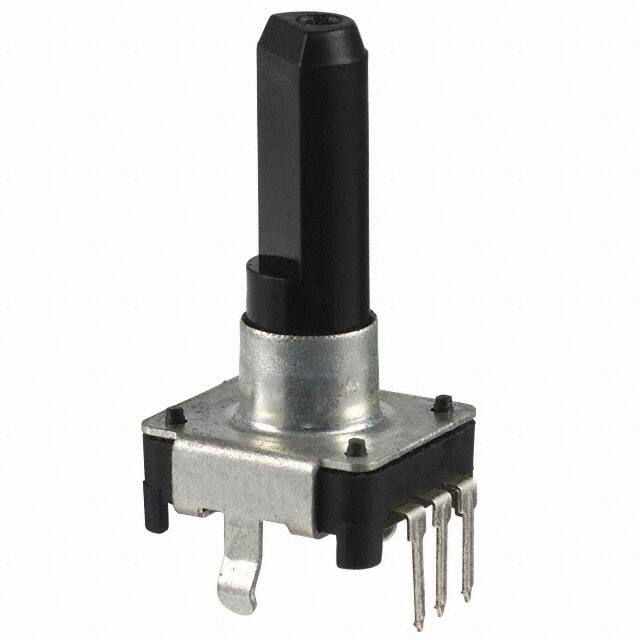

	NSE12DV2425 ROTARY ENCODER MECHANICAL 24PPR C&K	3804	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin

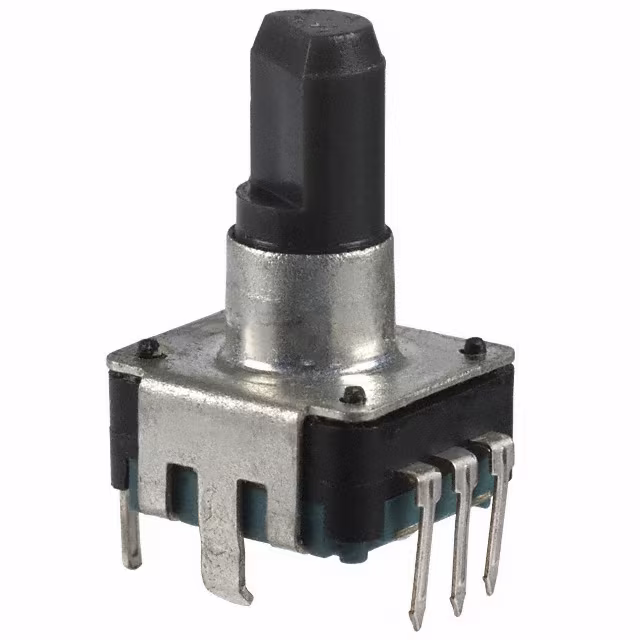

	NSE12DSV1220 ROTARY ENCODER MECHANICAL 12PPR C&K	3664	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin

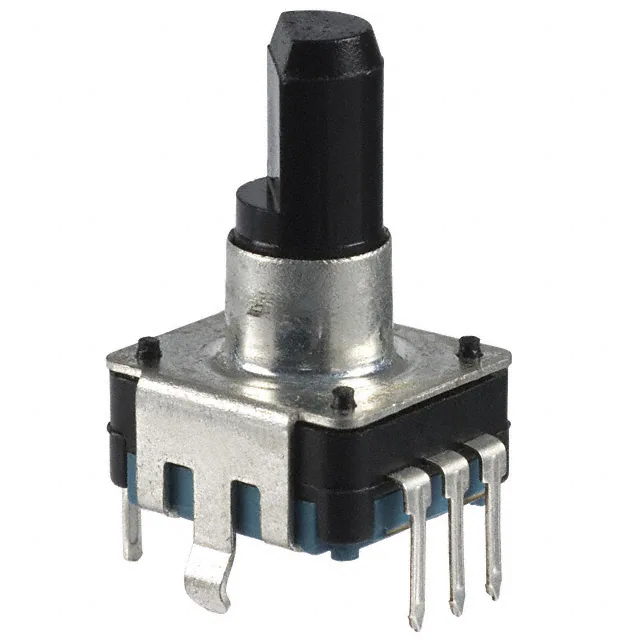

	NSE12DSV2420 ROTARY ENCODER MECHANICAL 24PPR C&K	2906	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin

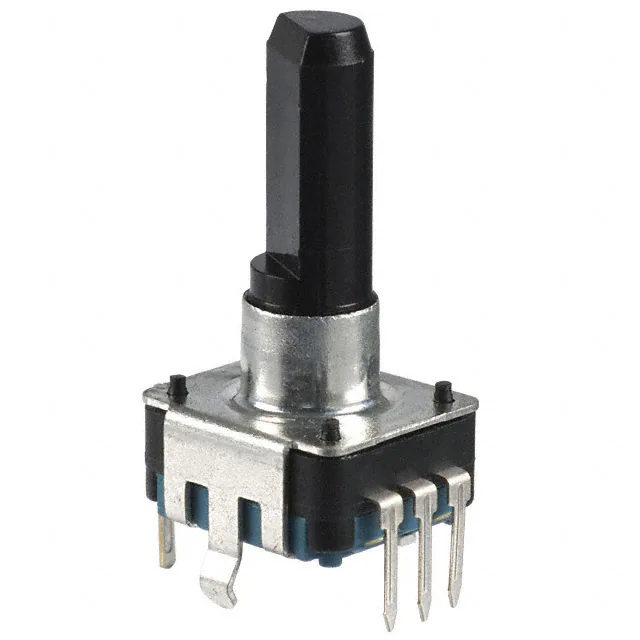

	NSE12DSV1225 ROTARY ENCODER MECHANICAL 12PPR C&K	3541	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin

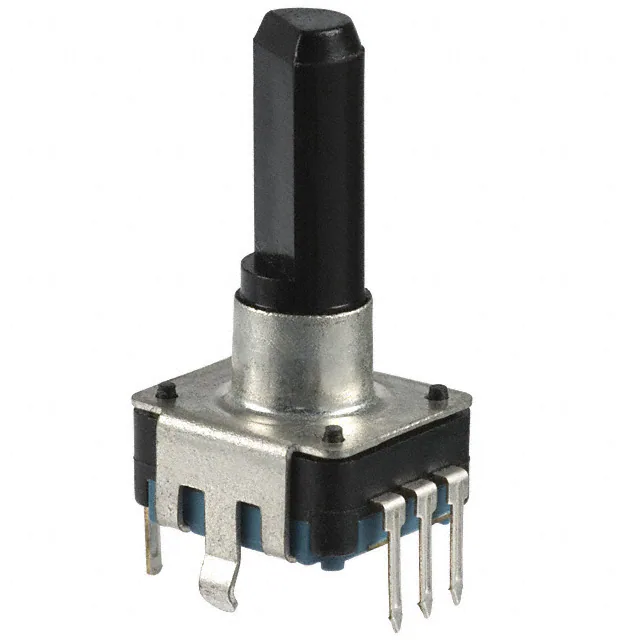

	NSE12DSV2425 ROTARY ENCODER MECHANICAL 24PPR C&K	2987	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE12	Obsolete	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin

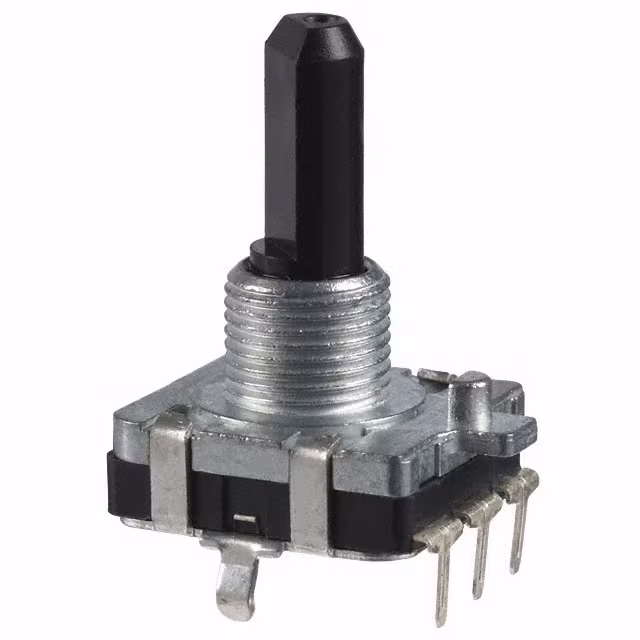

	NSE16DV2426 ROTARY ENCODER MECHANICAL 24PPR C&K	2311	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE16	Obsolete	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

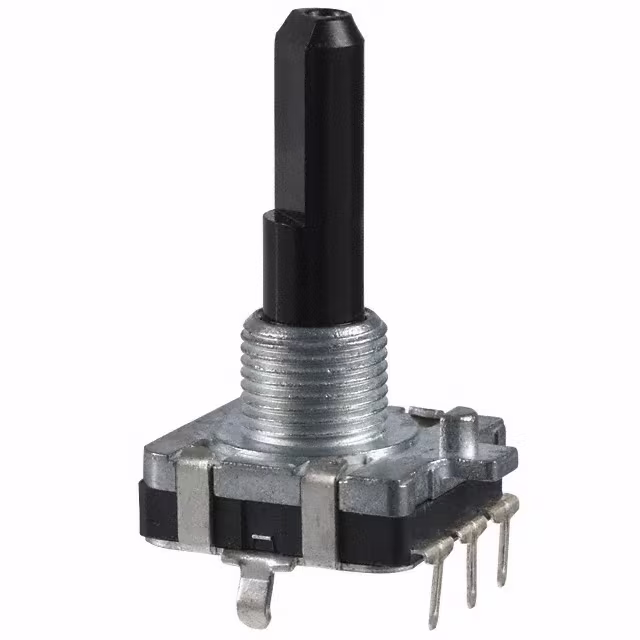

	NSE16DV2431 ROTARY ENCODER MECHANICAL 24PPR C&K	2594	0.00	- + Add To Cart Inquiry Now	Datasheet	-	NSE16	Obsolete	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
