Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-Rated | Size/Dimension | Width | AirFlow | StaticPressure | BearingType | FanType | Features | Noise | Power(Watts) | RPM | Termination | IngressProtection | OperatingTemperature | ApprovalAgency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9A0624S4021FAN 60X25MM 24VDC RBLS |
3347 | 12.57 |
Add To CartInquiry Now |
Datasheet |
Box | San Cooler 60 | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
9A0912H4021FAN 92X25MM 12VDC RBLS |
2260 | 12.73 |
Add To CartInquiry Now |
Datasheet |
Box | San Cooler 92 | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.52 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
9A0612G4011FAN 60X25MM 12VDC RBLS TACH |
940 | 12.90 |
Add To CartInquiry Now |
Datasheet |
Box | San Cooler 60 | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
9A0912S401FAN 92X25MM 12VDC TACH |
388 | 13.07 |
Add To CartInquiry Now |
Datasheet |
Box | San Cooler 92 | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.24 W | 3550 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
109P0412H701FAN 40X15MM 12VDC TACH |
676 | 12.73 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.56 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
109P0424H701FAN 40X15MM 24VDC TACH |
3609 | 13.38 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.4 CFM (0.179m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.92 W | 7700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
109P0412F3013FAN 40X28MM 12VDC TACH |
2081 | 14.04 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 8.6 CFM (0.241m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.26 W | 6700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
109P0412J3023FAN 40X28MM 12VDC |
3301 | 14.04 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 4.2 W | 12500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
109P0424H602FAN 40X20MM 24VDC |
3285 | 14.21 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.2 CFM (0.230m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 1.68 W | 8300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
109P0424J3013FAN 40X28MM 24VDC TACH |
2261 | 14.36 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 4.32 W | 12500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
109P0412J3013FAN 40X28MM 12VDC TACH |
3077 | 14.36 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 4.2 W | 12500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
9GA0412P7G001FAN 40X15MM 12VDC TACH,PWM |
2304 | 14.38 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 12.7 CFM (0.356m³/min) | 0.770 in H2O (191.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 2.04 W | 13100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
109R0812S4011FAN 80X25MM 12VDC RBLS TACH |
668 | 14.69 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 80 | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
109P0405H901FAN 40X10MM 5VDC TACH |
930 | 15.30 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 800 mW | 6200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | |
9GA0412P6G001FAN 40X20MM 12VDC TACH,PWM |
3898 | 16.00 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 1.280 in H2O (318.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 2.76 W | 16000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |

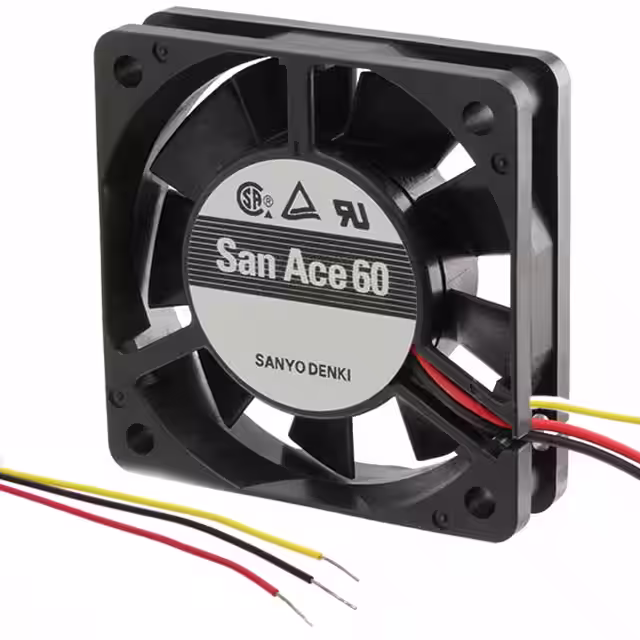

109P0605H701FAN 60X15MM 5VDC TACH |
3502 | 13.38 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 60 | Active | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.3 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
9GA0512P7G001FAN 52X15MM 12VDC TACH,PWM |
3466 | 16.48 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 52 | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 17.7 CFM (0.496m³/min) | 0.367 in H2O (91.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 1.56 W | 7800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
9GA0312P3J001FAN 38X28MM 12VDC TACH,PWM |
3929 | 16.91 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 38 | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.1 CFM (0.563m³/min) | 2.891 in H2O (720.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.5dB(A) | 6.2 W | 23500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |

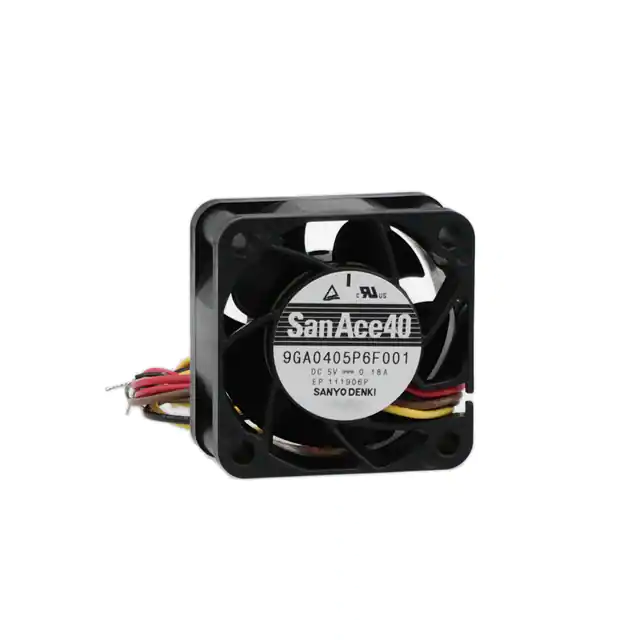

9GA0405P6F001FAN 40X20MM 5VDC TACH, PWM |
795 | 16.98 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 900 mW | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |

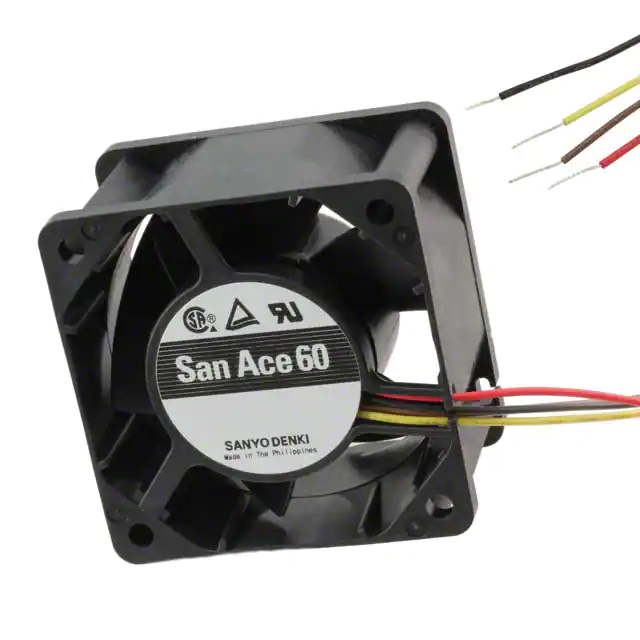

9GA0612P6G001FAN 60X20MM 12VDC TACH,PWM |
3414 | 17.30 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 60 | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 31.1 CFM (0.871m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.12 W | 6850 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL |
