Results:

Photo	Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
	CCT272440-80-10-02 CURR SENSE XFMR 80A CHAS MNT TDK Corporation	141	26.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	80 A	-	-	-	3000:1	352Ohm	-	Chassis Mount	1.201 L x 1.083 W (30.50mm x 27.50mm)	1.634 (41.50mm)
	VST10/9EE-200S1C2 CURRENT SENSE TRANSFORMERS, WOUN TDK Corporation	208	9.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VST	Active	-	-	-	-	-	1:100	-	-	-	Surface Mount	0.476 L x 0.425 W (12.10mm x 10.80mm)	0.394 (10.00mm)

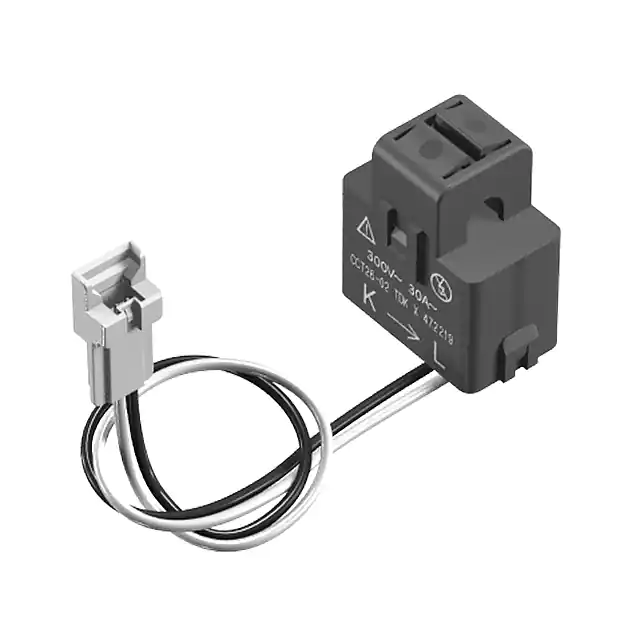

	CCT261631-30-06-02 CURR SENSE XFMR 30A CHAS MNT TDK Corporation	3566	20.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	30 A	-	-	-	3000:1	492Ohm	-	Chassis Mount	1.126 L x 0.728 W (28.60mm x 18.50mm)	1.260 (32.00mm)

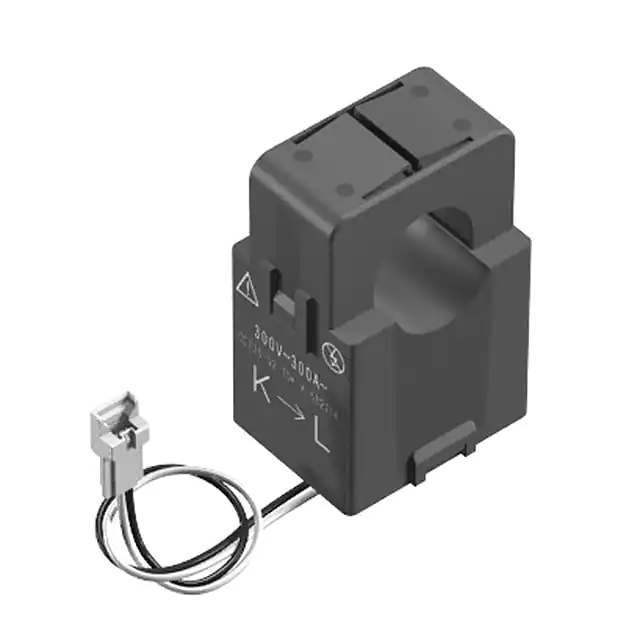

	CCT354571-300-24-02 CURR SENSE XFMR 300A CHAS MNT TDK Corporation	2107	56.56	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	300 A	-	-	-	3000:1	103Ohm	-	Chassis Mount	1.909 L x 1.555 W (48.50mm x 39.50mm)	2.835 (72.00mm)

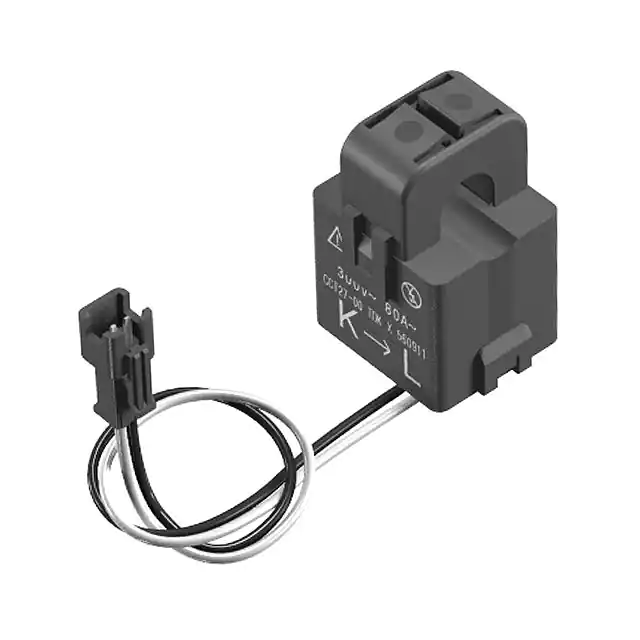

	CCT272440-80-10-00 CURR SENSE XFMR 80A CHAS MNT TDK Corporation	211	26.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	80 A	-	-	-	3000:1	352Ohm	-	Chassis Mount	1.201 L x 1.083 W (30.50mm x 27.50mm)	1.634 (41.50mm)

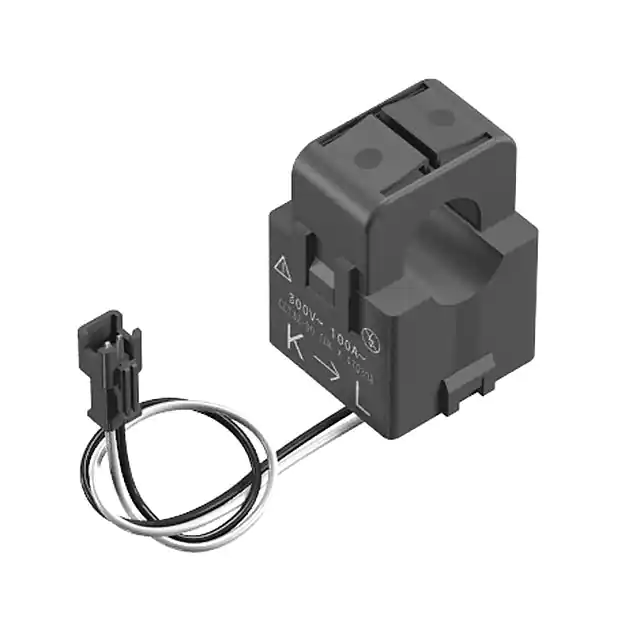

	CCT323047-100-16-00 CURR SENSE XFMR 100A CHAS MNT TDK Corporation	3325	32.66	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	100 A	-	-	-	3000:1	285Ohm	-	Chassis Mount	1.378 L x 1.280 W (35.00mm x 32.50mm)	1.870 (47.50mm)
	CCT406393-600-36-02 CURR SENSE XFMR 600A CHAS MNT TDK Corporation	3343	86.86	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	600 A	-	-	-	3000:1	-	-	Chassis Mount	1.575 L x 2.480 W (40.00mm x 63.00mm)	3.661 (93.00mm)

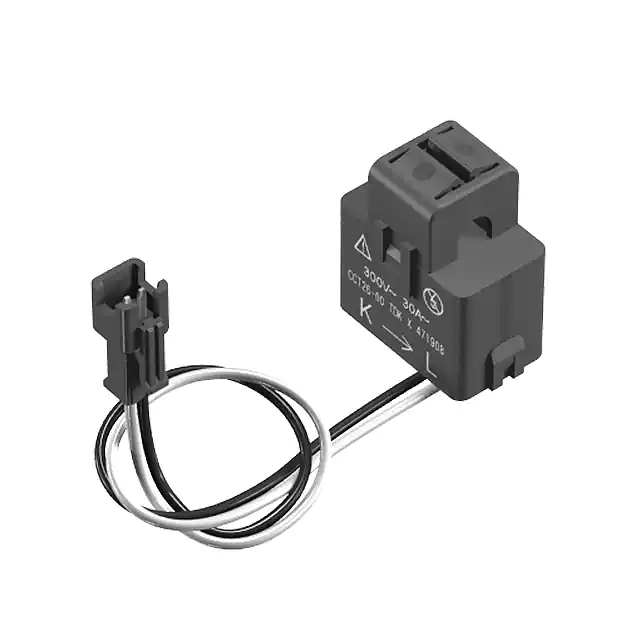

	CCT261631-30-06-00 CURR SENSE XFMR 30A CHAS MNT TDK Corporation	3216	20.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	30 A	-	-	-	3000:1	492Ohm	-	Chassis Mount	1.126 L x 0.728 W (28.60mm x 18.50mm)	1.260 (32.00mm)

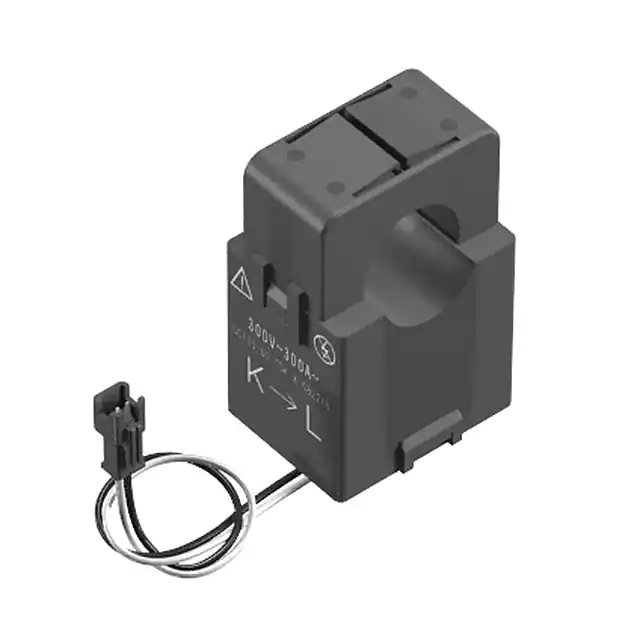

	CCT354571-300-24-00 CURR SENSE XFMR 300A CHAS MNT TDK Corporation	2497	56.56	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	300 A	-	-	-	3000:1	103Ohm	-	Chassis Mount	1.909 L x 1.555 W (48.50mm x 39.50mm)	2.835 (72.00mm)

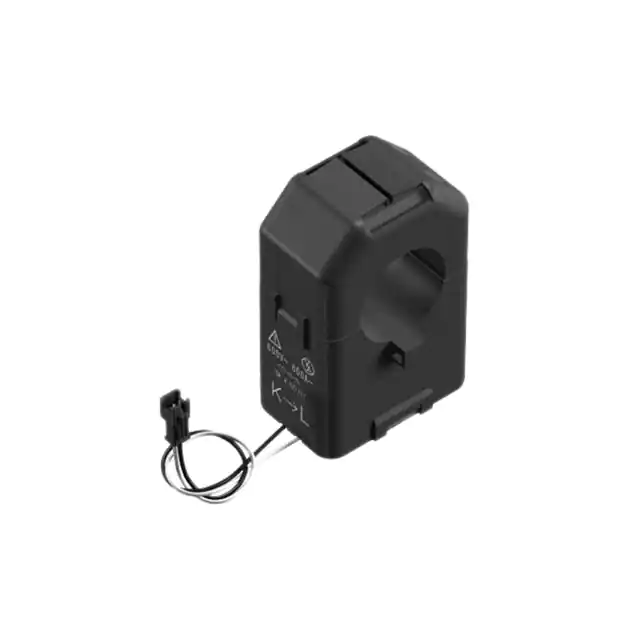

	CCT406393-600-36-00 CURR SENSE XFMR 600A CHAS MNT TDK Corporation	3208	86.86	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	600 A	-	-	-	3000:1	-	-	Chassis Mount	1.575 L x 2.480 W (40.00mm x 63.00mm)	3.661 (93.00mm)

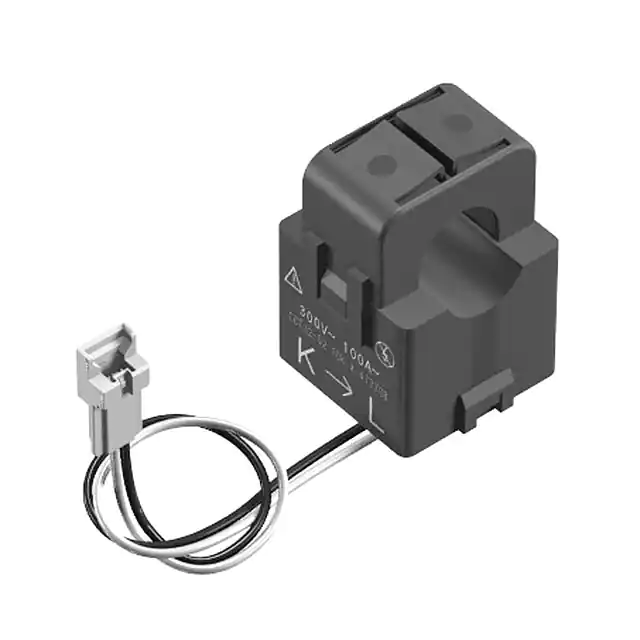

	CCT323047-100-16-02 CURR SENSE XFMR 100A CHAS MNT TDK Corporation	2374	32.66	- + Add To Cart Inquiry Now	Datasheet	Bulk	CCT	Active	50/60Hz	Non-Invasive (Split Core)	100 A	-	-	-	3000:1	285Ohm	-	Chassis Mount	1.378 L x 1.280 W (35.00mm x 32.50mm)	1.870 (47.50mm)
